Aurora Rolling LED Series — Product Brochure (A3)

Aurora Displays

aurorasignage.com.au · Engineered in Australia, built for the world

Rolling Series

Indoor · Modular

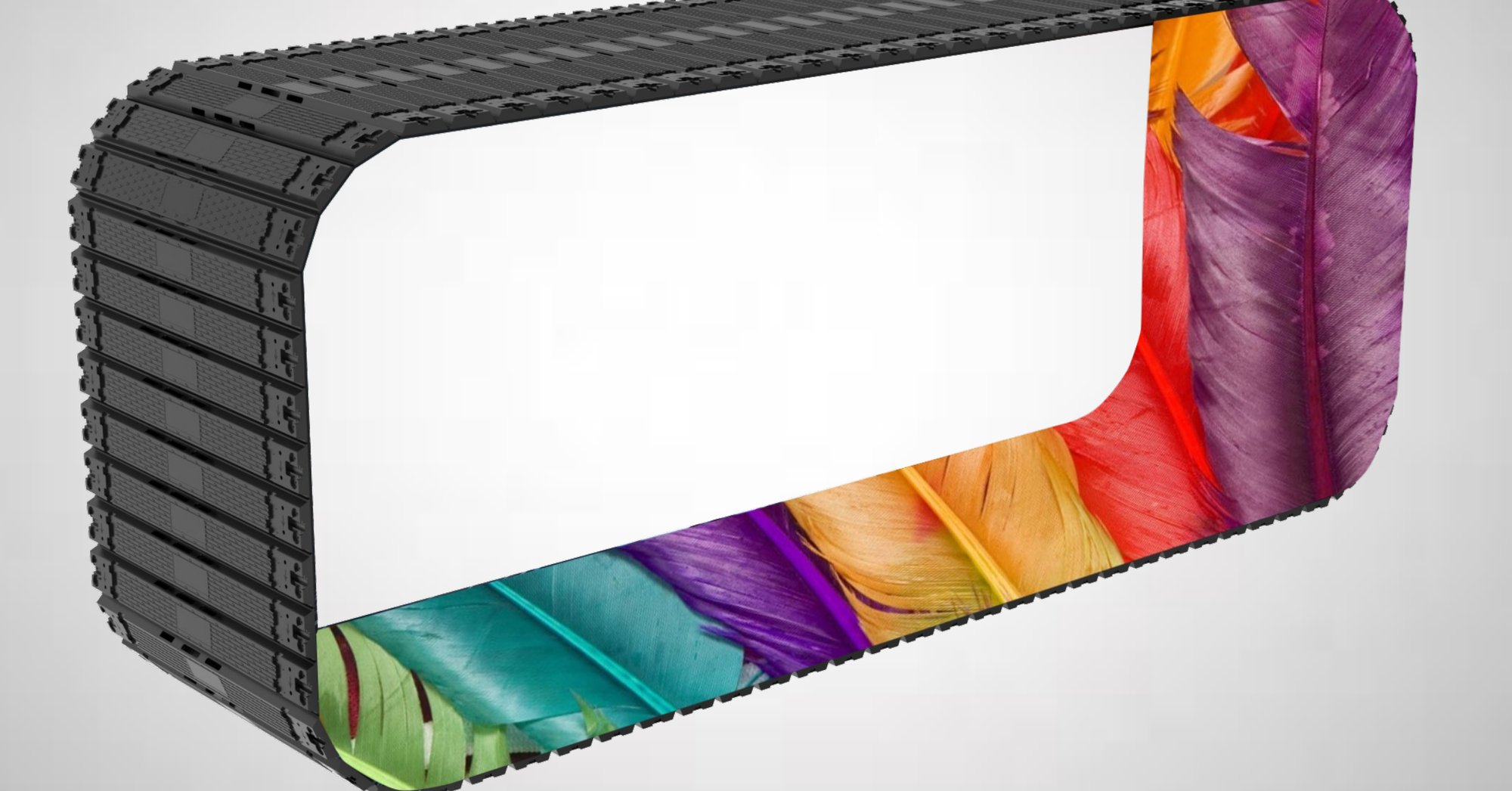

The Rolling LED Display

RollingLED Display

A flexible, fast-deploy LED system for floors, ceilings, walls and curved surfaces. Magnesium-alloy modules, front-service maintenance and FPC-connected panels — packed down to a roll, set up in minutes.

◆ Front Service

◆ FPC Interconnect

◆ Interactive

◆ Roll-up Transport

16.5mm

Module Depth

12.5kg/m²

Screen Weight

16m

Max Width

100khrs

Lifespan

Aurora Displays

Rolling LED Series — Product Brochure

aurorasignage.com.au · Rev. 2026.05

A new shape for LED

A new shape for LED.

The Aurora Rolling Series is a modular indoor LED display that rolls up for transport and clicks together on site. It mounts to floors, ceilings and walls, wraps around columns, and powers interactive activations — without the rigging time, freight cost or maintenance burden of conventional cabinets.

Each module is just 16.5 mm deep and weighs 550 g, formed from magnesium alloy and connected by flexible FPC cabling. A single one-square-metre unit ships in a flight case 600 × 350 mm — and eight square metres of screen fits in a case smaller than a check-in bag.

Six pixel pitches cover the indoor range from 1.25 mm fine-pitch retail walls to 3.91 mm experiential floors. Front service means every panel can be replaced from the viewing side without disassembly. The interactive variant adds touch-and-step responsiveness for retail, museum and event applications.

Aurora supplies the Rolling Series with full local engineering support, structural drawings, and integration into the ScreenBuilder and FrameBuilder design workflow.

Aurora Rolling Series — a single screen scales to 16 m wide with no height limit.

16.5mm

Module Depth

Sits flush against any substrate.

12.5kg/m²

Screen Weight

Half the weight of a cabinet system.

16m

Max Width

Single screen, single sender pair.

100khrs

Lifespan

Front-service keeps it in spec.

Aurora Displays

Rolling LED Series — Product Brochure

aurorasignage.com.au · Rev. 2026.05

Three connections. Zero compromises.

Three connections.
Zero compromises.

Every Rolling Series panel is built around three connection points — FPC for signal, a locking power connector for current, and an interactive controller for touch and motion input. Front access means replacements happen in seconds, not hours.

1

FPC Signal Interconnect

Flexible printed-circuit ribbon carries data panel-to-panel with zero ingress points. Tool-free coupling.

2

Locking Power Connector

DC 24 V / 26 V keyed coupling rated for repeated mate cycles — designed for daily rigging.

3

Interactive Controller

Onboard touch / step-sensing PCB on every panel. Plug-and-play interactivity, no external sensor layer.

4

Front-Service Access

Replace any module from the viewing side. The screen stays where it is.

Rolling Series panel architecture detail

Panel architecture — FPC signal ribbon, locking power and interactive controller.

Aurora Displays

Rolling LED Series — Product Brochure

aurorasignage.com.au · Rev. 2026.05

550 grams of engineering

550 grams of engineering.

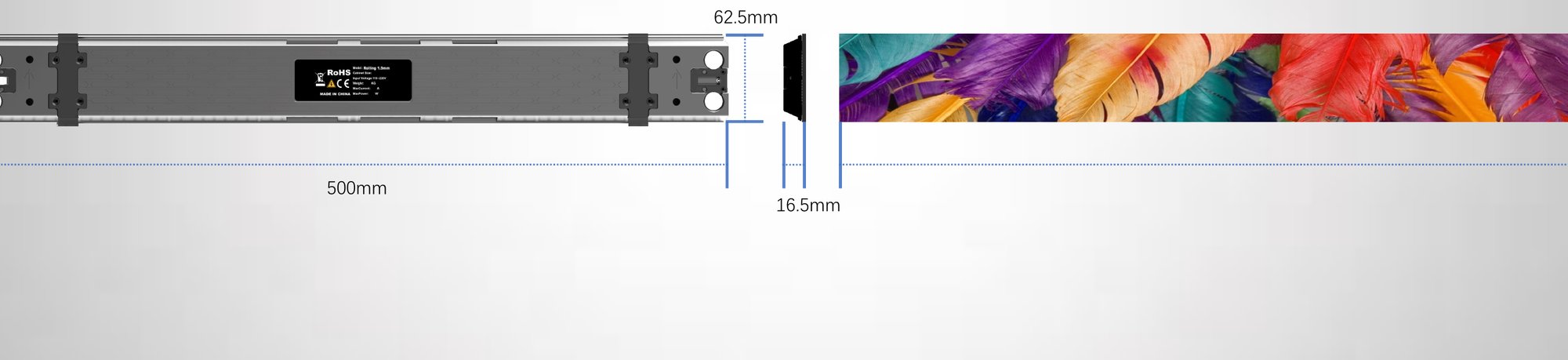

A precision-extruded magnesium-alloy chassis carries the LED module, driver board and FPC connector in a 500 × 62.5 mm footprint just 16.5 mm deep — light enough to install above-head, rigid enough to walk on.

500mm

Module Length

62.5mm

Module Height

16.5mm

Module Depth

550g

Module Weight

The same panel goes anywhere. Wrap it around a column, lay it across a stage, hang it from a truss, or build a tunnel walkthrough — Aurora Rolling supports every orientation without custom hardware.

Mode 01

Floor

Walk-on rated. Ideal for retail, museum, immersive activation and stage decks.

Mode 02

Ceiling

Hung from rated truss or fixed ceiling rigging. Up-light or down-light orientation.

Mode 03

Wall & Curved

Flat or wrapped around columns and curved surfaces — flexible FPC handles the bend.

Aurora Displays

Rolling LED Series — Product Brochure

aurorasignage.com.au · Rev. 2026.05

Hung in minutes

Hung in minutes.

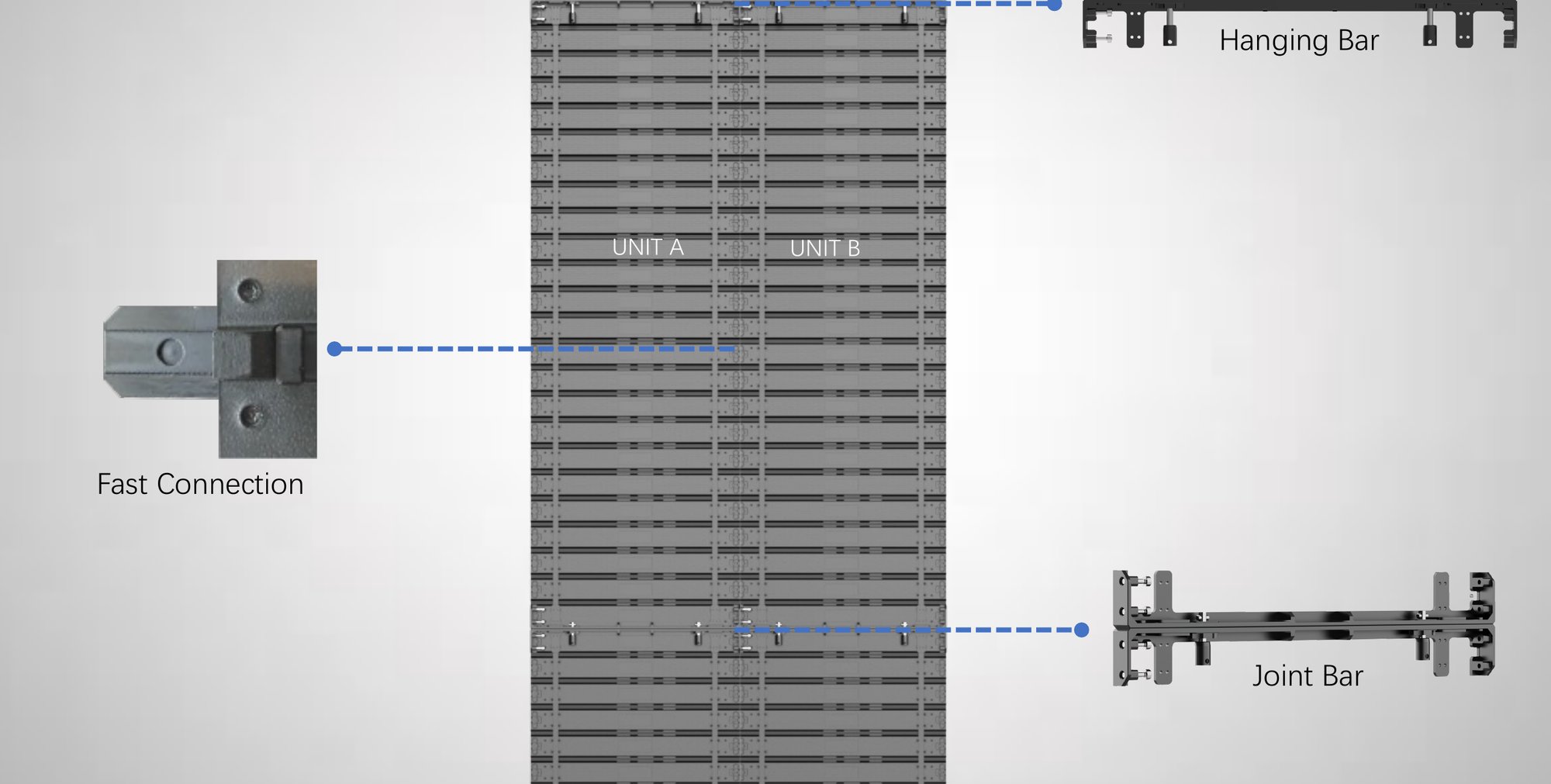

The Rolling Series rigging kit ships with hanging bars, joint bars and fast-connection clips designed for repeated install-and-strike cycles. No custom brackets, no third-party hardware — pull from the case, click together, hoist.

A

Hanging Bar

Top-of-screen suspension bar with rated shackle points. Mates with standard wire or chain hoist.

B

Joint Bar

Mid-screen tensioning bar links adjacent panel columns and prevents lateral sway during transitions.

C

Fast Connection

Quarter-turn locking clip joins Unit A to Unit B in under five seconds. Tool-free, repeatable, audible click.

16m

Maximum Width

Single screen driven from a single sender / receiver card pair.

∞

Maximum Height

No upper height limit. Continuous vertical chaining of modules to whatever height the structure can carry.

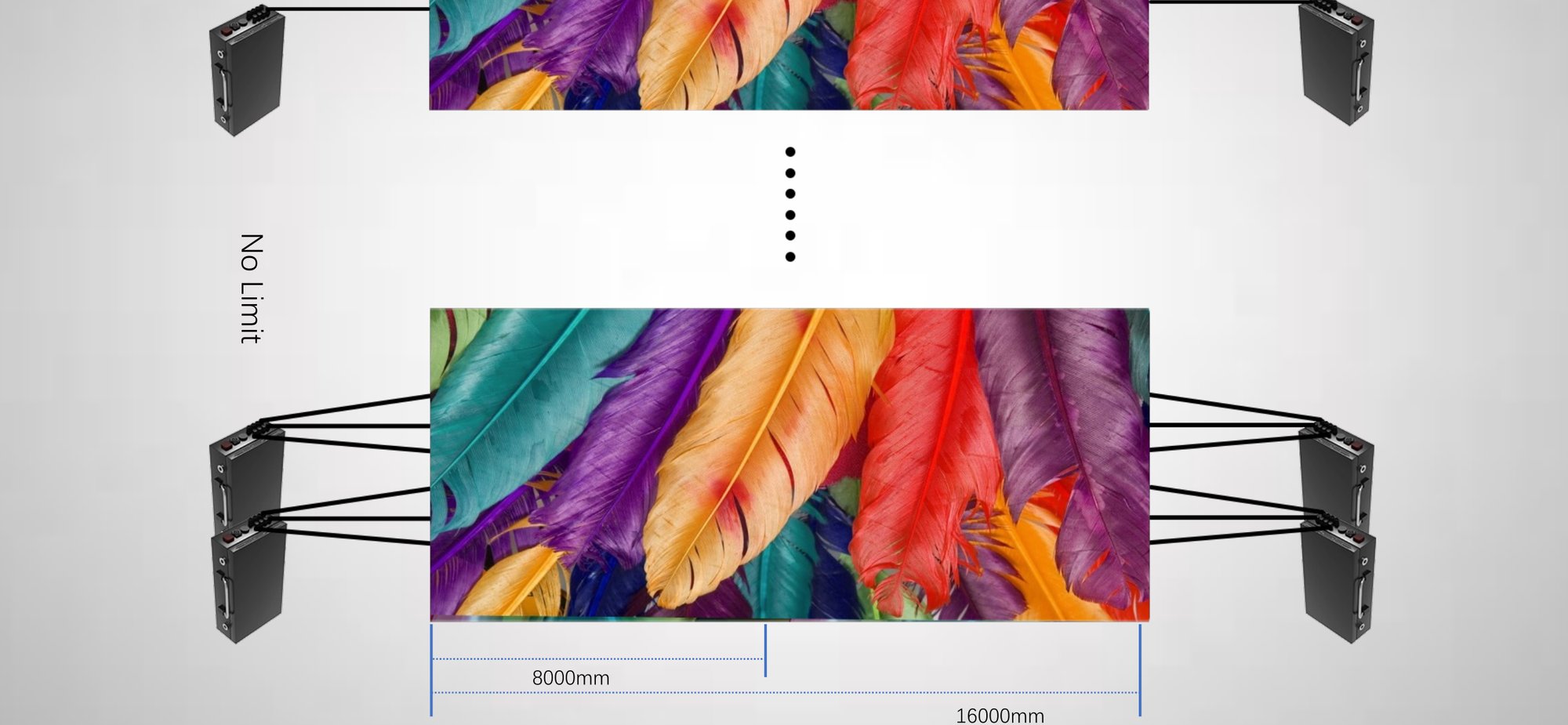

16 metres wide. No height limit. A single Aurora Rolling screen can span 16 m horizontally driven from one signal pair. Vertically, there is no design ceiling — daisy-chain modules to whatever height the structure can carry.

Aurora Displays

Rolling LED Series — Product Brochure

aurorasignage.com.au · Rev. 2026.05

Eight square metres. One flight case.

Because the panels roll, the freight footprint is a fraction of a conventional cabinet system. Save shipping volume on the way in, save on labour at strike — and ship the same kit to the next venue without repacking.

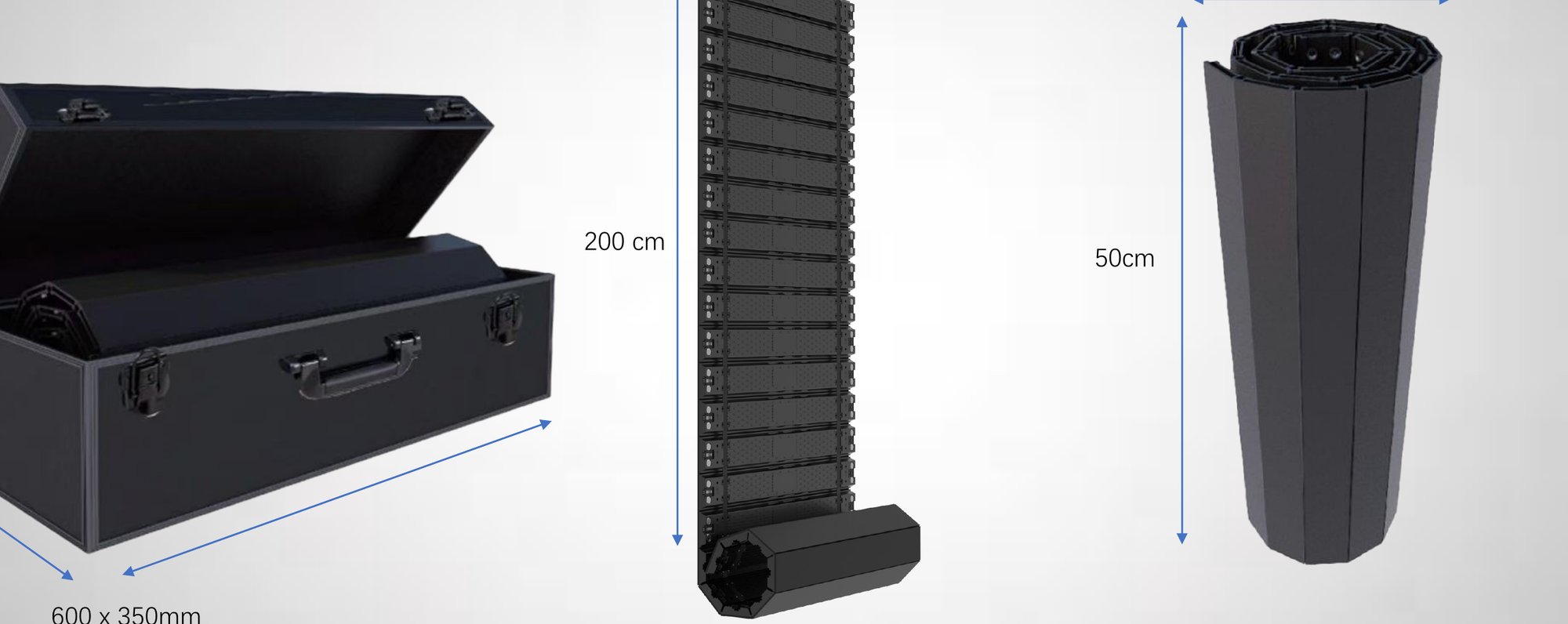

Single-Unit Pack

1 m²

Case Size600 × 350 × 350 mm

Case Volume0.648 m³

Screen Area1 m² (0.5 × 2.0 m)

Total Weight35 kg

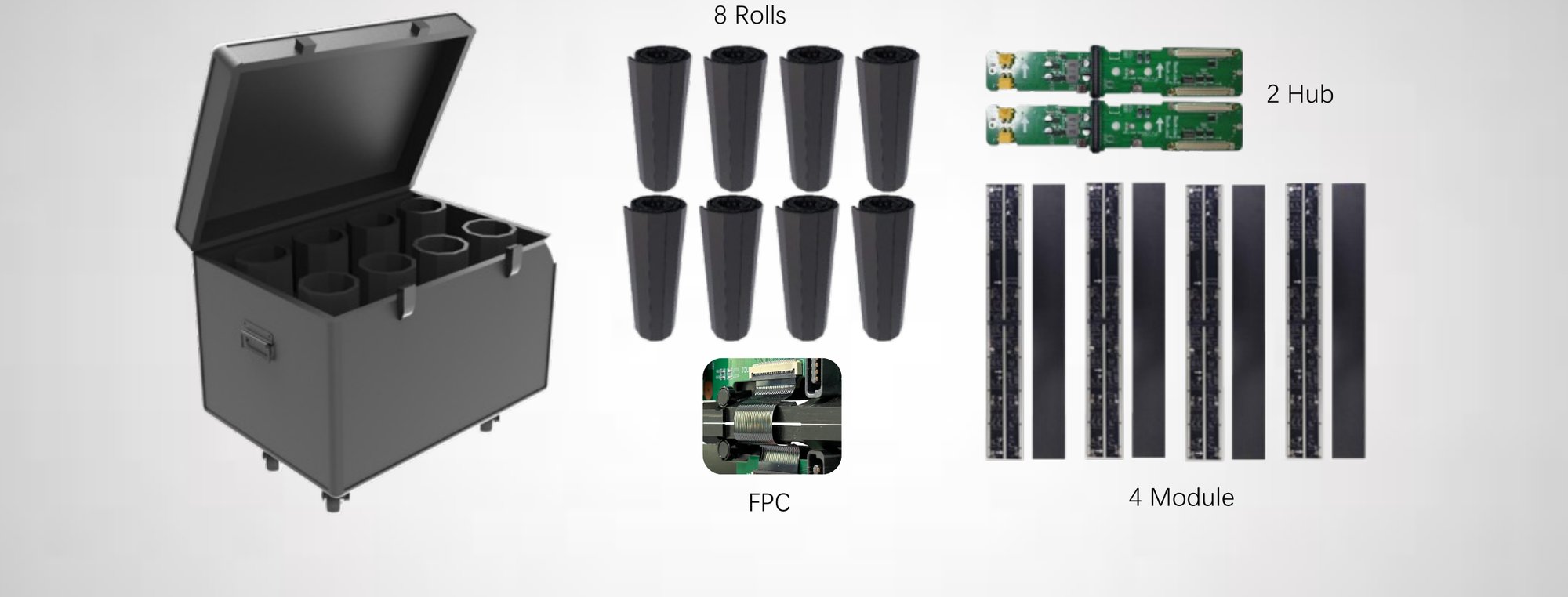

Eight-Unit Pack

8 m²

Case Size1400 × 712 × 550 mm

Case Volume0.549 m³

Screen Area8 m² (8 × 1 m² units)

Total Weight160 kg

Eight square metres of screen fits in a case smaller than a check-in bag. A single one-square-metre unit ships in a flight case 600 × 350 mm — the roll-up form factor cuts freight volume and on-site labour in equal measure.

Aurora Displays

Rolling LED Series — Product Brochure

aurorasignage.com.au · Rev. 2026.05

Six pitches. One platform.

Six pixel-pitch variants share a common module footprint, mounting hardware and rigging kit — so a 1.25 mm fine-pitch wall and a 3.91 mm event floor install the same way. Aurora model codes follow the LDC500[pitch]SFP-ROLL-V naming pattern.

Parameter	LDC500125SFP-ROLL-V1.25 mm	LDC500156SFP-ROLL-V1.56 mm	LDC5001953SFP-ROLL-V1.953 mm	LDC50025SFP-ROLL-V2.5 mm	LDC5002604SFP-ROLL-V2.604 mm	LDC500391SFP-ROLL-V3.91 mm
Pixel Pitch	1.25 mm	1.56 mm	1.953 mm	2.5 mm	2.604 mm	3.91 mm
LED Package	SMD 1010	SMD 1010	SMD 1212	SMD 1515	SMD 1515	SMD 2020
Pixel Density (dots/m²)	640,000	409,600	262,144	160,000	147,456	65,536
Module Resolution	400 × 50	320 × 40	256 × 32	200 × 25	192 × 24	128 × 16
Scan Mode	1/50	1/40	1/32	1/25	1/24	1/16
Brightness	600 nits	600 nits	700 nits	750–1000 nits	750–1000 nits	750–1000 nits
Module Size	500 × 62.5 mm (common across all pitches)
Screen Weight	12.5 kg/m²
IP Rating	Front IP65 / Rear IP21
Viewing Angle	140°
Colour Depth / Refresh	12–16 bit · 3,840 Hz
Input Voltage	DC 24 V / 26 V · AC 110–220 V, 50/60 Hz
Control System	Novastar / Colorlight compatible
Power (Max / Avg)	400 W/m² max · 130 W/m² avg
Lifespan / Maintenance	100,000 hours · Front service
Application	Indoor · Floor, ceiling, wall, curved, interactive

Module Footprint

500 × 62.5 mm

Module Depth

16.5 mm · 550 g

Chassis

Magnesium Alloy

Interconnect

FPC Ribbon

Why Rolling Series

Roll-Up Transport

Ships in a 600 × 350 mm flight case. Eight square metres per case. No repacking between venues.

Front Service

Replace any module from the viewing side in seconds. Screen stays in place. No tools required.

No Custom Hardware

Floor, ceiling, wall, column and curved surfaces — one rigging kit covers all six pixel pitches.

Local Engineering

Full structural drawings, ScreenBuilder integration, and Aurora engineering support in Australia.

Aurora Displays

Rolling LED Series — Product Brochure

aurorasignage.com.au · Rev. 2026.05

Built for the strike day after

Built for the strike day after.

Aurora Rolling has been deployed across automotive activations, retail launches and outdoor demonstration walls. The same kit goes from a flagship car-reveal floor in the morning to a curved column wrap that evening.

Field 01

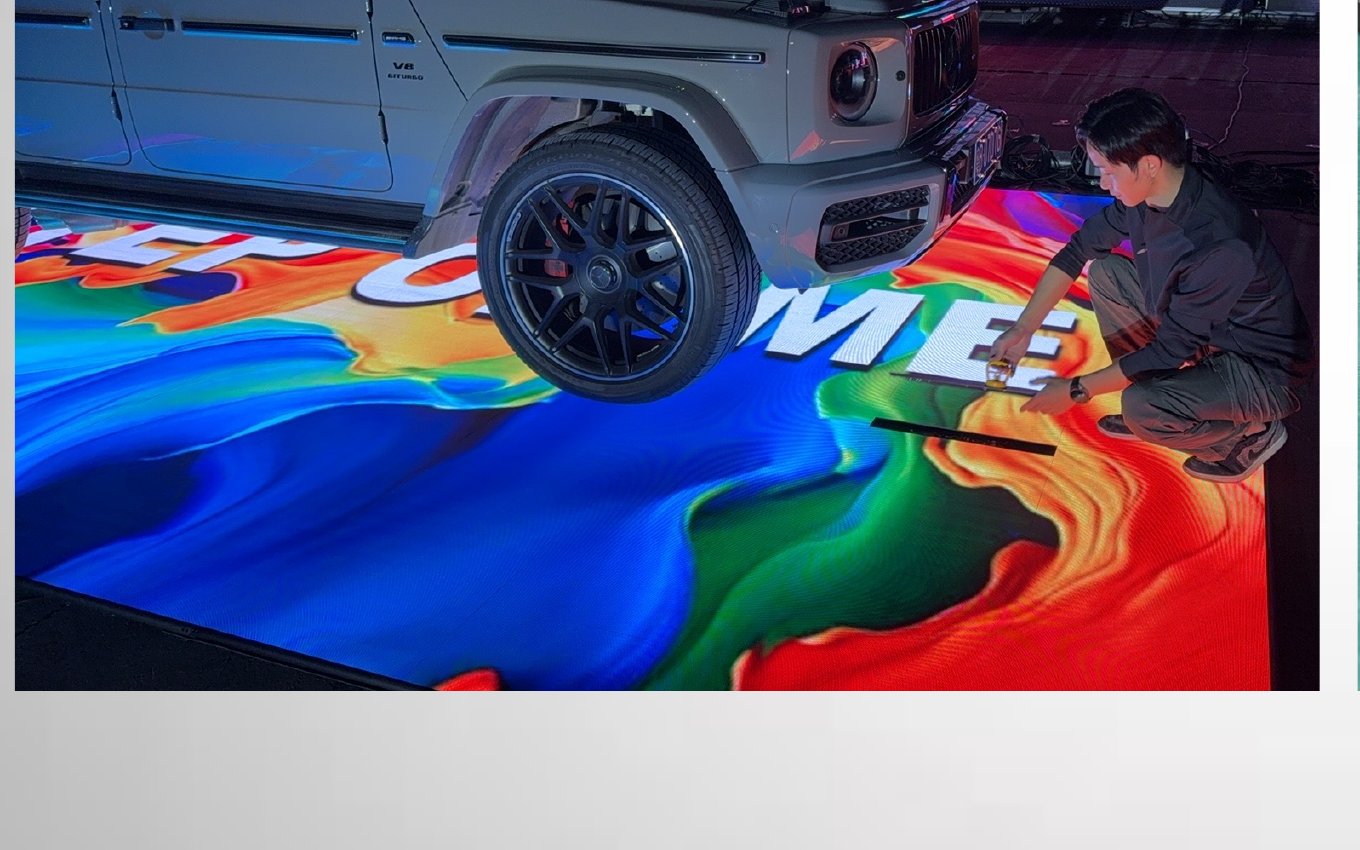

Walk-on floor activation — automotive launch

Field 02

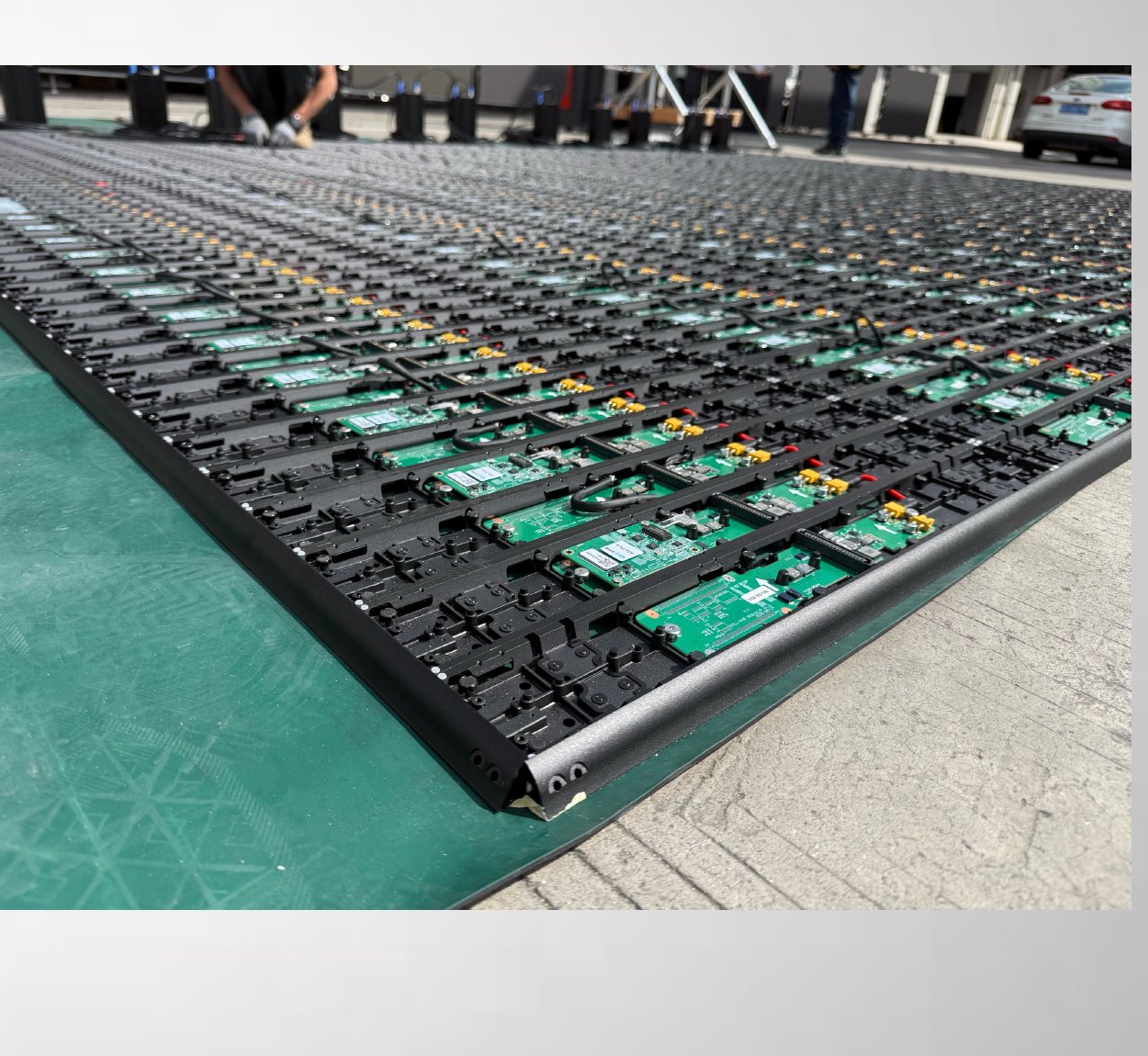

PCB and module-level construction detail

Configure · Quote · Deploy

Configure your Rolling Series screen and get a quote in minutes.

Build it in Aurora ScreenBuilder, generate a structural frame in FrameBuilder, and download installation drawings, quote and 3D model from one workflow.

STEP 01

ScreenBuilder

Configure pitch, size and mounting mode — see it in 3D instantly.

STEP 02

FrameBuilder

Generate a structural frame and rigging plan automatically.

STEP 03

Download

Installation drawings, quote and 3D model from one workflow.
