LDC60018WPR-MIP-G

LDC60018WPR-MIP-G

GSR rangeOutdoor

Outdoor P1.8 GSR display

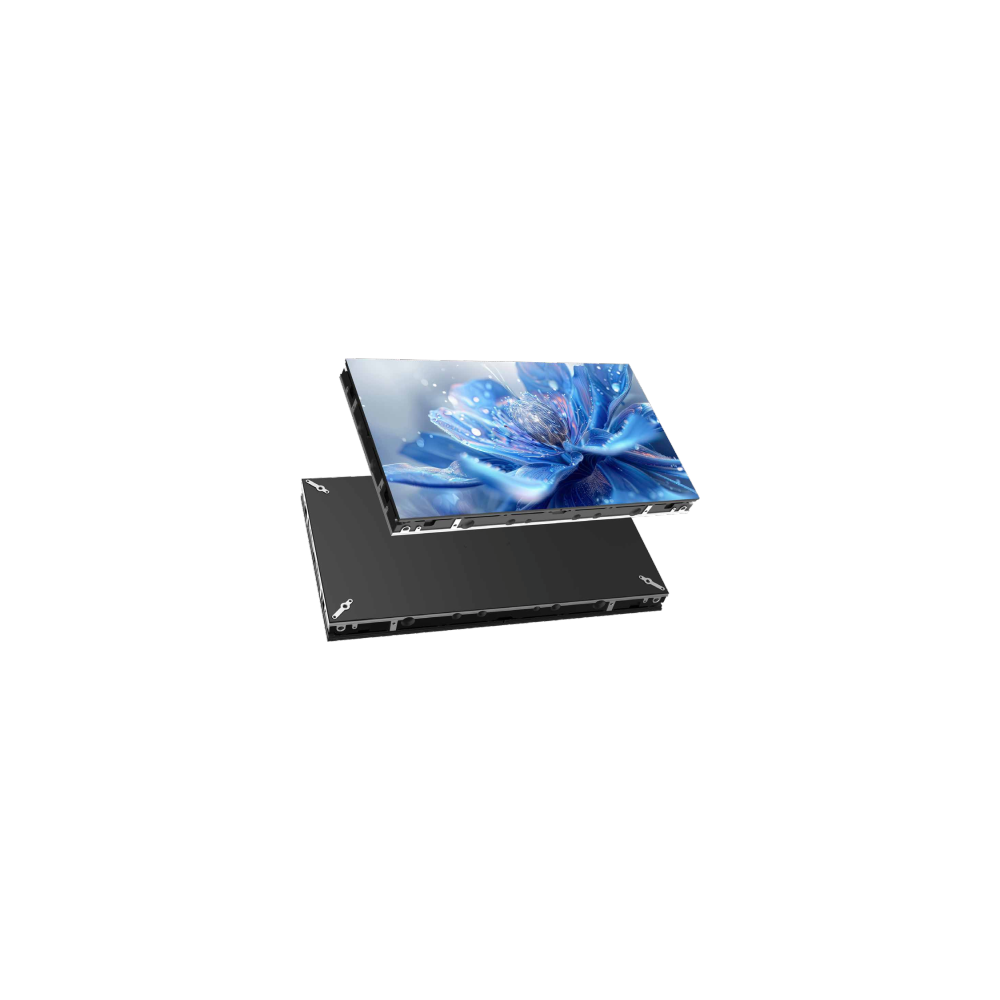

LED Cabinet LDC600XX MIP Series 600x337.5mm Outdoor

Recommended viewing distance

Best for audiences ~1.8 m or further away.

Build your screen
Weight
6.5 kg
Height
337.5 mm height
Width
600 mm width
Depth
49 mm depth
Pixel pitch
Pixel pitch 1.8 mm
Brightness
4500 nits brightness

Documents & resources

Unpublished brochures, drawings and datasheets can be requested through the quote form.

BrochureAvailable on request

Marketing overview, key specs and use cases.

Request this document
Cabinet drawingPDF

Dimensioned engineering drawing for installers.

Download
DatasheetAvailable on request

Technical specifications and performance data.

Request this document
3D modelAvailable on request

Download the cabinet model in GLB format.

Request this document
User manualAvailable on request

Setup, operation and maintenance guide.

Request this document
Product videoAvailable on request

See the cabinet in action.

Request this video

Additional resources

Mirrored from our document library — flyers, install guides, drawings and software you may need alongside this cabinet.

Full specifications

Physical

Cabinet width
600 mm
Cabinet height
337.5 mm
Cabinet depth
49 mm
Weight
6.5 kg

Display

Pixel pitch
1.8 mm
Resolution
320 × 180
Pixels per cabinet
57,600
Brightness
4500 nits
Refresh rate
3840 Hz

Power

Max power
137 W
Average power
44 W

Environmental

Location
Outdoor
IP rating (front)
IP66
IP rating (rear)
IP66

Common applications

This cabinet is regularly specified for the following installation types.

RetailOutdoor advertisingDigital signageVideo walls

About the GSR range

Value tier — weather-rated & high-brightness.

Built for Australian conditions. Sun-readable brightness, IP-rated cabinets, and front-serviceable for billboards, stadiums, and public spaces.

Explore the full GSR range →

Other pitches in this family

Same cabinet platform, different pixel pitch. Pick the one that fits your viewing distance.

View family overview →
0.9 mm
LDC60009WPR-MIP-G
1.2 mm
LDC60012WPR-MIP-G
1.5 mm
LDC60015WPR-MIP-G
2.3 mm
LDC60023WPR-MIP-G

Other GSR cabinets

LDC15018SFP-COB-PLUS-V
P1.8 · 150×337.5 mm
LDC15009SFP-COB-PLUS-V
P0.9 · 150×337.5 mm
LDC15012SFP-COB-PLUS-V
P1.2 · 150×337.5 mm
LDC60025FP-UNI-L
P2.5 · 600×337.5 mm
LDC60018WPR-MIP-G FAQ

Common questions about the LDC60018WPR-MIP-G

Is the LDC60018WPR-MIP-G suitable for outdoor use?
Yes. The LDC60018WPR-MIP-G is a weather-rated outdoor LED cabinet (IP66 front), with 4500-nit brightness for sun-readable performance. It is engineered for permanent outdoor installations across Australian conditions.
What viewing distance does the LDC60018WPR-MIP-G suit?
As a rough rule of thumb, the minimum comfortable viewing distance in metres is roughly equal to the pixel pitch in millimetres. With 1.8 mm pitch, the LDC60018WPR-MIP-G is best for audiences 1.8 m or further from the screen.
How bright is the LDC60018WPR-MIP-G?
4500 nits — bright enough for direct sunlight on outdoor signage and stadium scoreboards. Brightness is software-controlled so you can dial it back for evening operation.
What is the LDC60018WPR-MIP-G typically used for?
Common applications include Retail, Outdoor advertising, Digital signage, Video walls. Talk to Aurora's team if you'd like to discuss a different use case — most builds combine cabinets across the catalogue.
How do I get a quote for a LDC60018WPR-MIP-G screen?
Open ScreenBuilder to spec your wall (cabinets, layout and 3D preview) or request a tailored quote from Aurora's team on 1300 841 542. Pricing is project-based — we factor in install, processing and Australian service support.
