Aurora Billboards: LED Outdoor Advertising Screens for Highway & Retail Sites

LED billboards have replaced static print as the default for high-visibility outdoor advertising. They run multiple campaigns from one site, dim and brighten with ambient light so the screen looks right at every hour, and pay back their install cost across the season instead of per-print.

Aurora's billboard-grade GSR cabinets are weather-rated front and rear, with redundant power, sun-readable brightness and front-serviceable modules so panels can be swapped without removing the cabinet from the structure. Pixel pitch is matched to read distance — long-range highway sites usually run P6–P10, while shorter-range retail and forecourt billboards use P3–P5.

We supply the screen, processor, mount design and commissioning as a single specified system. Sites are surveyed and certified to Australian standards, and supported by a local service network rather than an offshore parts queue.

See also: How to install an LED billboard in Australia

Get a quote

Request a quote for billboard

Tell us about your project and we'll come back within one business day.

We respond within one business day.

About this solution

Aurora Signage is one of Australia's digital billboard companies in the equipment sense of the term: we design, build and install the outdoor LED billboard screen itself, rather than owning a network and selling advertising space on one. If you're commissioning a new billboard site — a council, retailer, property owner or media operator — Aurora is the company that builds, certifies and supports the physical screen; booking advertising space on an existing digital billboard network is a separate industry served by out-of-home (OOH) media owners.

Aurora Billboards are outdoor LED display cabinets engineered for permanent installation in Australian conditions, sold and supported by Aurora Signage Pty Ltd. The GSR range ships IP65-rated front and rear as standard (IP66 on select models), with sun-readable brightness up to 10,000 nits and wind-load certification to AS/NZS 1170.2. Every cabinet is front-serviceable, so maintenance crews can swap modules without rear access to the structure — a practical requirement on highway pylons and retail signage sites. Aurora holds spares locally in Adelaide and Melbourne and supplies full RCM compliance documentation for council and procurement approval.

Our Gallery

Billboard in the wild

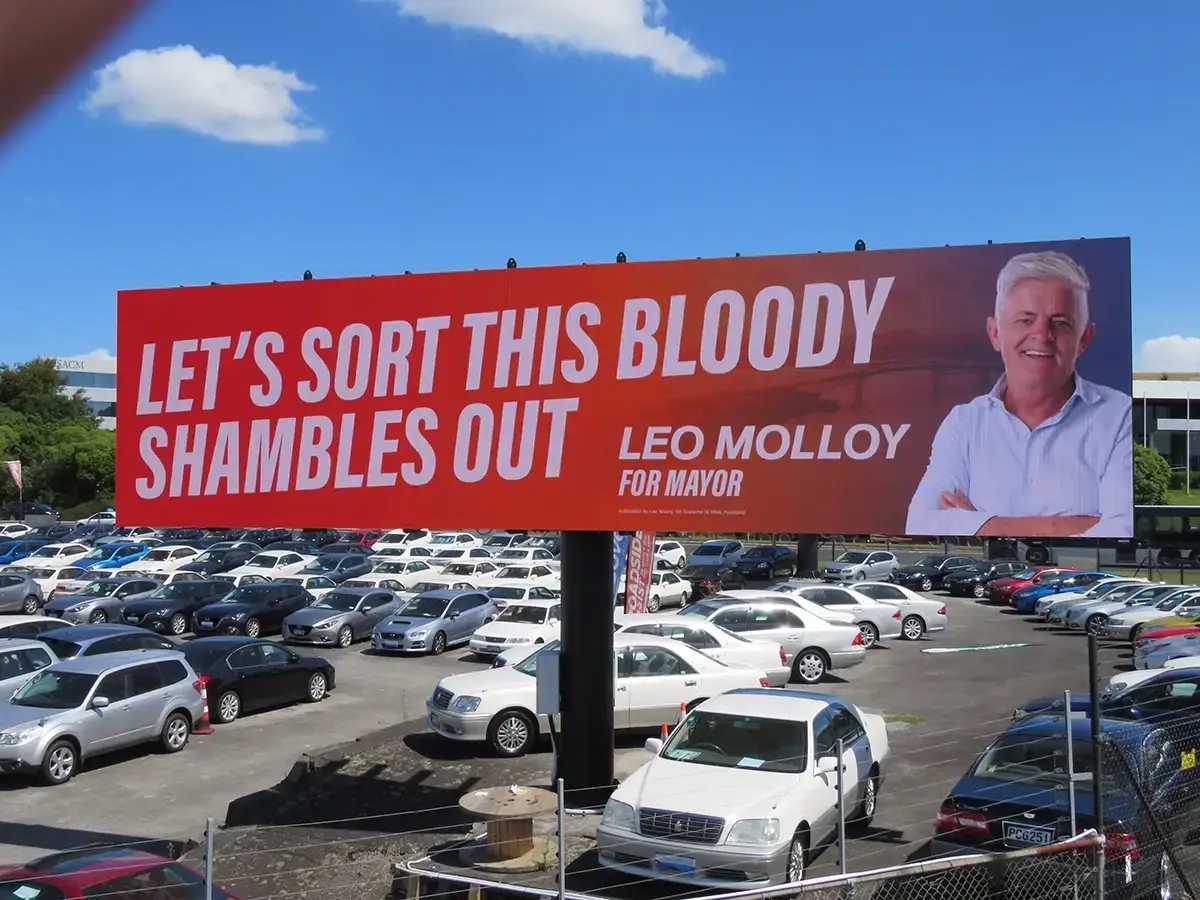

Aurora LED billboard installation — roadside outdoor advertising screen

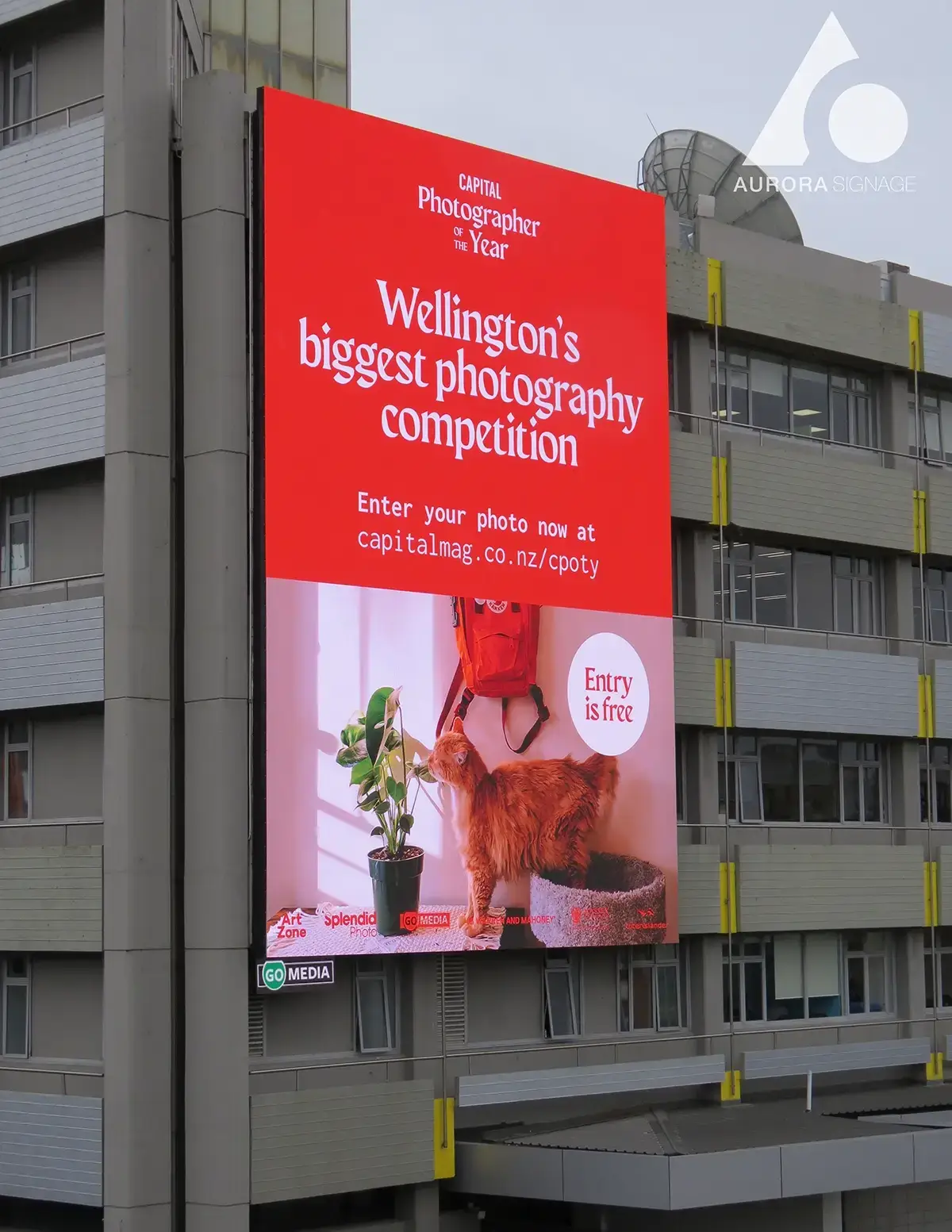

Aurora LED billboard at a retail forecourt site
Aurora outdoor LED billboard — highway advertising structure
Aurora LED billboard mounted above cars — roadside advertising format

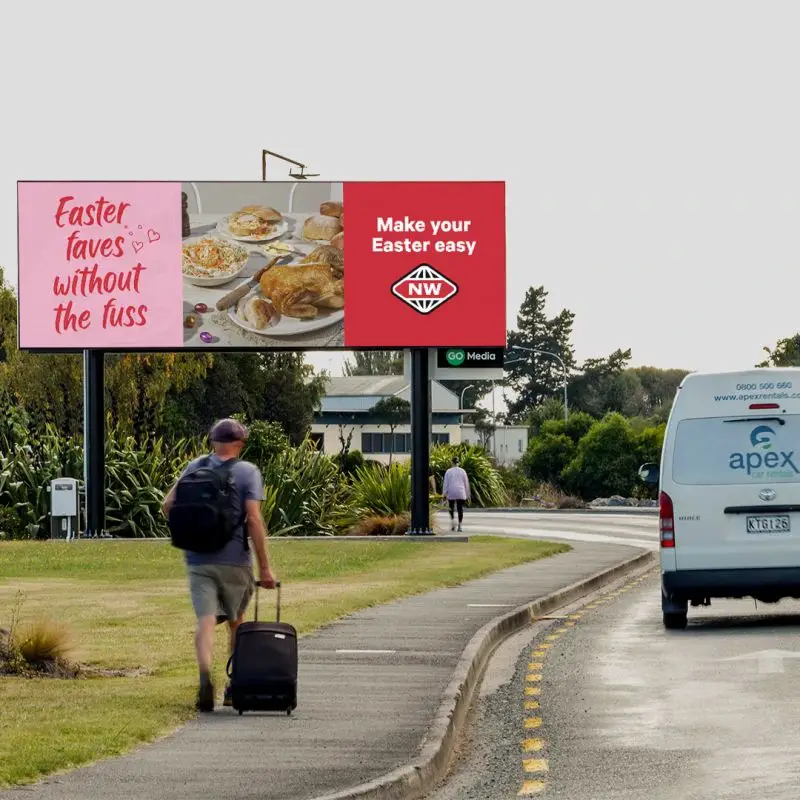

Aurora LED billboard installation — high-visibility outdoor display
Billboard Products

Cabinets we typically deploy

Outdoor-rated GSR cabinets typically specified for billboard installs.

VSPEC range badge
Outdoor
LDC50026WPR-V — VSPEC outdoor LED cabinet

LDC50026WPR-V

P2.6 pixel pitch · 500×500 mm cabinet

Brightness
4000 nits
Refresh
IP rating
IP66
Weight
8.5 kg
View Details
LUX range badge
Outdoor
LDC75029WPR-L — LUX outdoor LED cabinet

LDC75029WPR-L

P2.9 pixel pitch · 500×750 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
12.5 kg
View Details
VSPEC range badge
Outdoor
LDC75029WPR-V — VSPEC outdoor LED cabinet

LDC75029WPR-V

P2.9 pixel pitch · 500×750 mm cabinet

Brightness
5000 nits
Refresh
IP rating
IP65
Weight
13.5 kg
View Details
VSPEC range badge
Outdoor
LDC100029WPR-V — VSPEC outdoor LED cabinet

LDC100029WPR-V

P2.9 pixel pitch · 500×1000 mm cabinet

Brightness
5000 nits
Refresh
IP rating
IP65
Weight
18 kg
View Details
GSR range badge
Outdoor
LDC100029WPR-G — GSR outdoor LED cabinet

LDC100029WPR-G

P2.9 pixel pitch · 1000×1000 mm cabinet

Brightness
5500 nits
Refresh
IP rating
IP65
Weight
22.5 kg
View Details
GSR range badge
Outdoor
LDC150029WPR-G — GSR outdoor LED cabinet

LDC150029WPR-G

P2.9 pixel pitch · 1500×1000 mm cabinet

Brightness
5500 nits
Refresh
IP rating
IP65
Weight
17 kg
View Details
LUX range badge
Outdoor
LDC50029WPR-L — LUX outdoor LED cabinet

LDC50029WPR-L

P2.9 pixel pitch · 500×500 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
9 kg
View Details
LUX range badge
Outdoor
LDC100029WPR-L — LUX outdoor LED cabinet

LDC100029WPR-L

P2.9 pixel pitch · 500×1000 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
16 kg
View Details
VSPEC range badge
Outdoor
LDC50029WPR-V — VSPEC outdoor LED cabinet

LDC50029WPR-V

P2.9 pixel pitch · 500×500 mm cabinet

Brightness
5000 nits
Refresh
IP rating
IP65
Weight
9 kg
View Details
VSPEC range badge
Outdoor
LDC75039WPR-V — VSPEC outdoor LED cabinet

LDC75039WPR-V

P3.9 pixel pitch · 500×750 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
12.4 kg
View Details
GSR range badge
Outdoor
LDC150039WPR-G — GSR outdoor LED cabinet

LDC150039WPR-G

P3.9 pixel pitch · 1500×1000 mm cabinet

Brightness
5500 nits
Refresh
IP rating
IP65
Weight
17 kg
View Details
LUX range badge
Outdoor
LDC50039WPR-L — LUX outdoor LED cabinet

LDC50039WPR-L

P3.9 pixel pitch · 500×500 mm cabinet

Brightness
7000 nits
Refresh
IP rating
IP65
Weight
9 kg
View Details
LUX range badge
Outdoor
LDC100039WPR-L — LUX outdoor LED cabinet

LDC100039WPR-L

P3.9 pixel pitch · 500×1000 mm cabinet

Brightness
7000 nits
Refresh
IP rating
IP65
Weight
16 kg
View Details
LUX range badge
Outdoor
LDC75039WPR-L — LUX outdoor LED cabinet

LDC75039WPR-L

P3.9 pixel pitch · 500×750 mm cabinet

Brightness
7000 nits
Refresh
IP rating
IP65
Weight
12.5 kg
View Details
VSPEC range badge
Outdoor
LDC50039WPR-V — VSPEC outdoor LED cabinet

LDC50039WPR-V

P3.9 pixel pitch · 500×500 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
8.3 kg
View Details
GSR range badge
Outdoor
LDC100039WPR-G — GSR outdoor LED cabinet

LDC100039WPR-G

P3.9 pixel pitch · 1000×1000 mm cabinet

Brightness
5500 nits
Refresh
IP rating
IP65
Weight
22.5 kg
View Details
VSPEC range badge
Outdoor

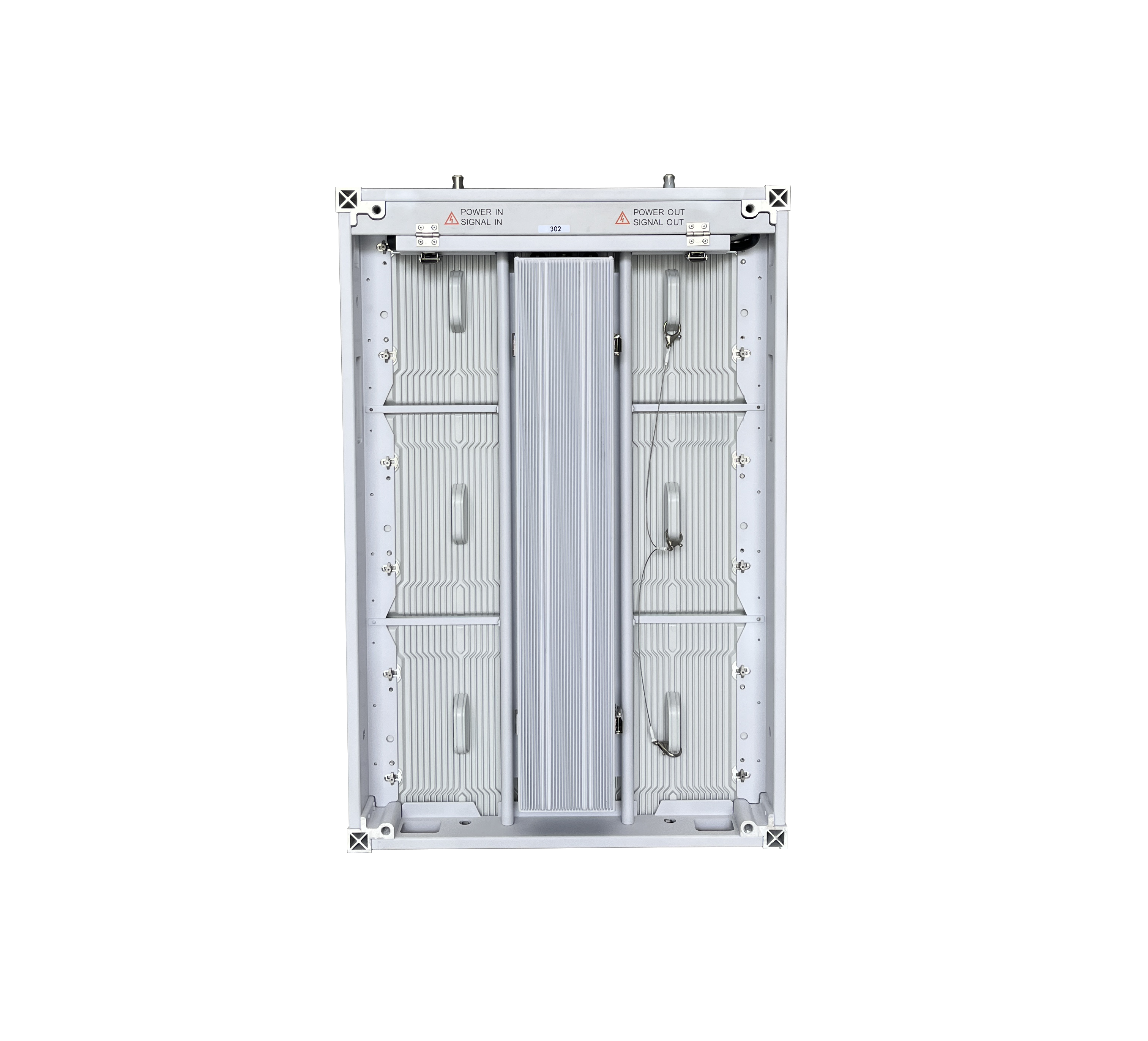

LDC100039WPR-V — VSPEC outdoor LED cabinet

LDC100039WPR-V

P3.9 pixel pitch · 500×1000 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
18.3 kg
View Details
LUX range badge
Outdoor
LDC9604WPR-L — LUX outdoor LED cabinet

LDC9604WPR-L

P4 pixel pitch · 960×960 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
20.5 kg
View Details
LUX range badge
Outdoor
LDC4804WPR-L — LUX outdoor LED cabinet

LDC4804WPR-L

P4 pixel pitch · 480×320 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
5 kg
View Details
VSPEC range badge
Outdoor
LDC50048WPR-V — VSPEC outdoor LED cabinet

LDC50048WPR-V

P4.8 pixel pitch · 500×500 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
9.2 kg
View Details
VSPEC range badge
Outdoor
LDC100048WPR-V — VSPEC outdoor LED cabinet

LDC100048WPR-V

P4.8 pixel pitch · 500×1000 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
18.3 kg
View Details
LUX range badge
Outdoor
LDC96057WPR-L — LUX outdoor LED cabinet

LDC96057WPR-L

P5.7 pixel pitch · 960×960 mm cabinet

Brightness
10000 nits
Refresh
IP rating
IP66
Weight
25.8 kg
View Details
VSPEC range badge
Outdoor
LDC96057WPR-V — VSPEC outdoor LED cabinet

LDC96057WPR-V

P5.7 pixel pitch · 960×960 mm cabinet

Brightness
8000 nits
Refresh
IP rating
IP66
Weight
25.8 kg
View Details
VSPEC range badge
Outdoor
LDC50062WPR-V — VSPEC outdoor LED cabinet

LDC50062WPR-V

P6.2 pixel pitch · 500×500 mm cabinet

Brightness
8000 nits
Refresh
IP rating
IP66
Weight
9.2 kg
View Details
VSPEC range badge
Outdoor
LDC100062WPR-V — VSPEC outdoor LED cabinet

LDC100062WPR-V

P6.2 pixel pitch · 500×1000 mm cabinet

Brightness
8000 nits
Refresh
IP rating
IP66
Weight
18.3 kg
View Details
GSR range badge
Outdoor
LDC150062WPR-G — GSR outdoor LED cabinet

LDC150062WPR-G

P6.2 pixel pitch · 1500×1000 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
17 kg
View Details
GSR range badge
Outdoor

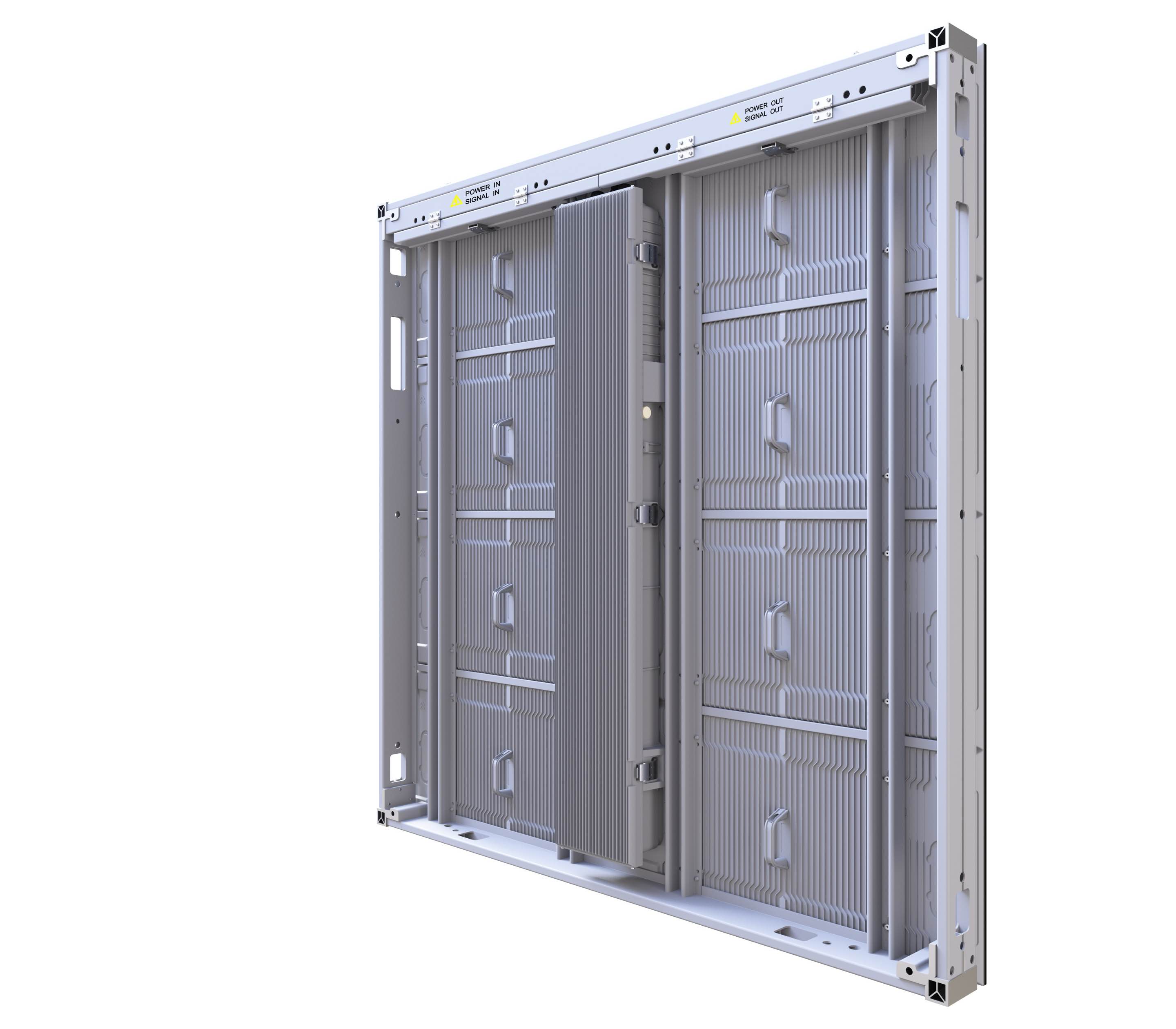

LDC100062WPR-G — GSR outdoor LED cabinet

LDC100062WPR-G

P6.2 pixel pitch · 1000×1000 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
22.5 kg
View Details
LUX range badge
Outdoor
LDC96066WPR-L — LUX outdoor LED cabinet

LDC96066WPR-L

P6.6 pixel pitch · 960×960 mm cabinet

Brightness
10000 nits
Refresh
IP rating
IP66
Weight
25.8 kg
View Details
VSPEC range badge
Outdoor

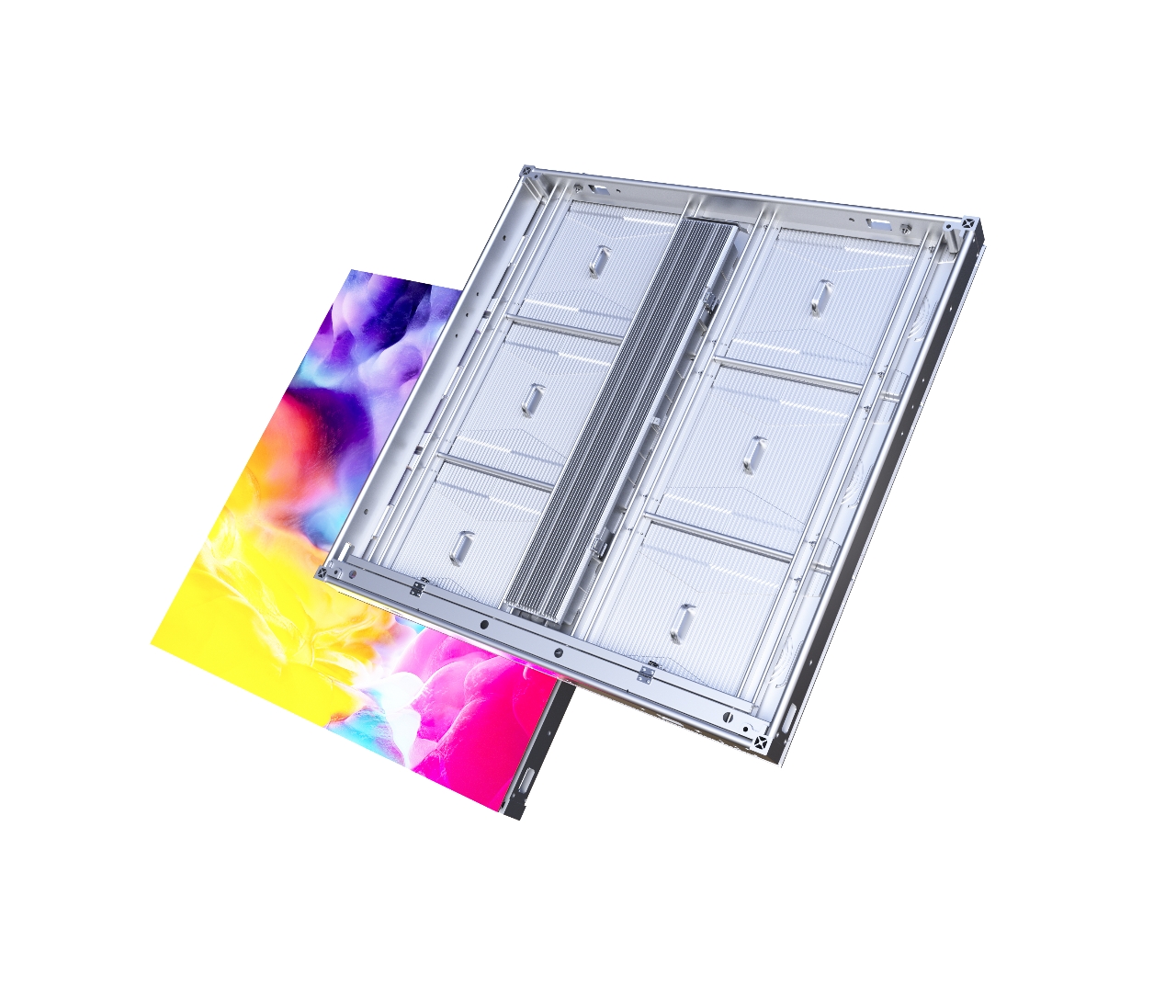

LDC96066WPR-V — VSPEC outdoor LED cabinet

LDC96066WPR-V

P6.6 pixel pitch · 960×960 mm cabinet

Brightness
8000 nits
Refresh
IP rating
IP66
Weight
25.8 kg
View Details
LUX range badge
Outdoor
LDC96010WPR-L — LUX outdoor LED cabinet

LDC96010WPR-L

P10 pixel pitch · 960×960 mm cabinet

Brightness
10000 nits
Refresh
IP rating
IP66
Weight
25.8 kg
View Details
VSPEC range badge
Outdoor
LDC96010WPR-V — VSPEC outdoor LED cabinet

LDC96010WPR-V

P10 pixel pitch · 960×960 mm cabinet

Brightness
8000 nits
Refresh
IP rating
IP66
Weight
25.8 kg
View Details
GSR range badge
Outdoor
LDC1000104WPR-G — GSR outdoor LED cabinet

LDC1000104WPR-G

P10.4 pixel pitch · 1000×1000 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
22.5 kg
View Details
Billboard FAQ

Billboard questions Aurora gets asked most

Why specify Aurora Billboards for an Australian outdoor site?
Aurora GSR-range billboard cabinets are built for permanent outdoor installation in Australian conditions: IP65 front and rear as standard (IP66 on select models), sun-readable brightness up to 10,000 nits, and wind-load certification to AS/NZS 1170.2. Every cabinet ships with RCM marking to AS/NZS 62368. Serviceability is front-access so your maintenance crew does not need rear access to the structure — a practical requirement on most highway and retail pylon sites.
What pixel pitch should an outdoor LED billboard use?
Pixel pitch matches viewing distance. Long-range highway billboards (60 m+ read distance) typically use P6–P10. Standard arterial-road and retail roadside billboards (15–60 m) use P5–P8. Short-range forecourt and shopfront billboards (3–15 m) use P3–P5. A useful rule of thumb is that the minimum comfortable viewing distance in metres roughly equals the pixel pitch in millimetres.
Are Aurora billboards weather-rated for Australian conditions?
Yes. Aurora GSR-range billboard cabinets are IP65 front and rear as standard, with IP66-rated options for cyclone-zone and coastal sites. Cabinets are tested against driven rain, dust ingress, UV exposure and temperature cycling representative of Australian climates from tropical FNQ through to South Australian summer extremes.
How are Aurora billboards serviced after installation?
GSR billboard cabinets are front-serviceable: modules, receivers and power supplies pull out from the front face for swap-out without removing the cabinet from the structure. This is critical on pylon-mounted highway billboards where rear access requires a crane. Aurora holds spares locally in Adelaide and Melbourne, with state-by-state distribution for same-day dispatch on warranty work.
How much does an LED billboard cost in Australia?
Outdoor LED billboards in Australia typically run $80,000–$250,000 fully installed, depending on cabinet size, pixel pitch, mounting structure and location. Cabinet supply alone ranges from approximately $40,000 for a compact P10 roadside display to $180,000+ for a large-format P6 highway billboard. Installation, structural engineering, council approvals and electrical connection typically add 40–80% to the cabinet cost. Full breakdown at /insights/led-billboard-cost-australia.
How do I get an outdoor LED billboard installed in Australia?
Installing an outdoor LED billboard in Australia runs through five stages: site survey and design, council or state planning approval (a development application or complying development certificate in NSW; an equivalent process under different names elsewhere) plus a structural certificate to AS/NZS 1170.2, cabinet manufacture, civil and electrical works, then crane installation and commissioning. Most projects run 3–5 months from signed quote to a live screen. Aurora manages the full sequence as one project rather than handing you between separate structural, electrical and screen suppliers — see the full step-by-step guide at /insights/led-billboard-installation-australia.
Is Aurora Signage a digital billboard company?
Yes, in the equipment sense: Aurora designs, builds and installs the outdoor LED billboard hardware itself, rather than owning a network and selling advertising space on it. If you're commissioning a new billboard site, Aurora is the company that builds and supports the screen. If you're instead looking to book advertising space on an existing digital billboard network, that's a different industry served by out-of-home (OOH) media owners such as oOh!media and QMS Media.
