Display Quality Test System

LEDAnalyzer.

Precise. Proven. Powerful.

A professional MLED display quality test system. LEDAnalyzer brings together industry-proven testing methods, equipment and standards to automatically measure brightness, contrast, gamma, PQ, colour gamut, colour accuracy and refresh rate — then delivers clear, reliable test reports in under 13 minutes.

Request a demo View sample reports
Test Time
13 min · one-click
Grayscale Range
1 – 255 levels
Compatibility
All major control systems
Test Duration
13min
End-to-end automated test cycle from a single click.
Grayscale Levels
255
Refresh & colour temperature sampled across the full grayscale.
Measurements
17+
Brightness, contrast, gamma, PQ, colour, uniformity and more.
Compatibility
100%
Works with all major LED control systems Aurora ships with.

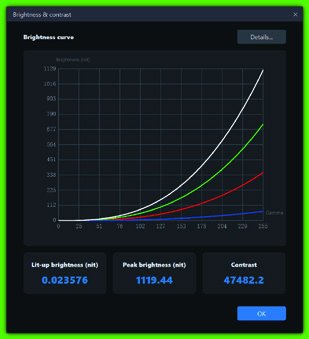

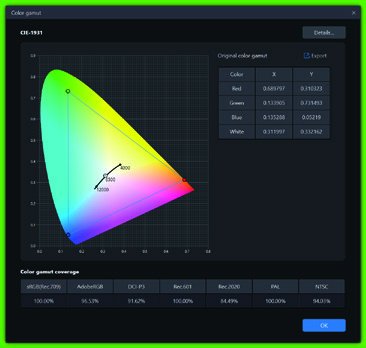

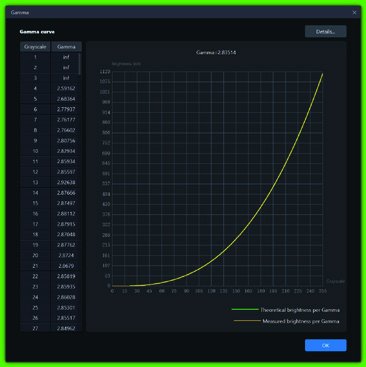

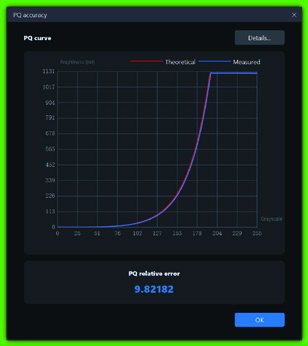

Brightness curve dialog Gamma measurement dialog CIE 1931 colour gamut dialog PQ accuracy dialog

One application · every measurement

From setup to signed report in a single click.

Pick the project template, connect the colorimeter and press Start. The LEDAnalyzer application walks through every test automatically — brightness, gamma, PQ, gamut, colour temperature, uniformity — and produces a numbered certificate when it's done.

See what's in the box
01 · Capabilities

Multiple tests. Accurate results.

Three measurement domains cover every axis of MLED display quality — from the photometric fundamentals of a single pixel, to the spatial consistency of a full cabinet, to the subjective feel of moving image content on screen.

DOMAIN · 01

Full Grayscale

Photometric and colorimetric measurement across the complete 1–255 grayscale range.

  • Brightness & contrast
  • Colour gamut & coverage
  • Colour temperature (1–255)
  • Refresh rate (1–255)
  • Gamma
  • PQ curve
DOMAIN · 02

Consistency

Spatial uniformity analysis across the entire cabinet or wall surface.

  • Brightness uniformity
  • Chroma uniformity
  • Max deviation reporting
  • Red · Green · Blue · White fields
DOMAIN · 03

Display Image

Subjective and dynamic image quality — the tests that separate a good wall from a great one.

  • White grayscale
  • Ramp transition
  • Gloss level
  • Viewing angle
  • Thermal effect
  • Solid-colour uniformity

Every pixel. Proven.

Colour that holds together at low grays. Uniformity that reads flat from every seat in the room. Gamma that tracks the theoretical curve under load. LEDAnalyzer measures all of it — so the wall that ships is the wall you promised.

03 · Why it matters

Built for the way Aurora integrators actually work.

The floor tells the truth. LEDAnalyzer is designed for the real conditions of a commissioning day — a noisy venue, a ticking clock, a client over your shoulder. Press go. Thirteen minutes later, the report is on the desk.

Pillar · 01

Professional Display Quality Test

Colour gamut, accuracy & colour temperature

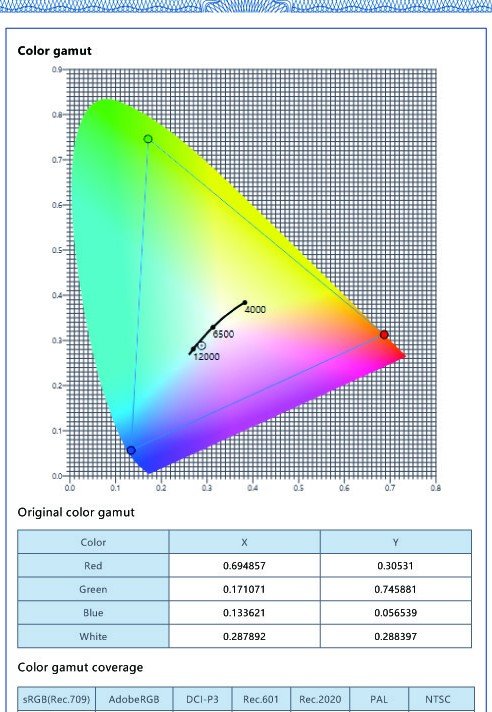

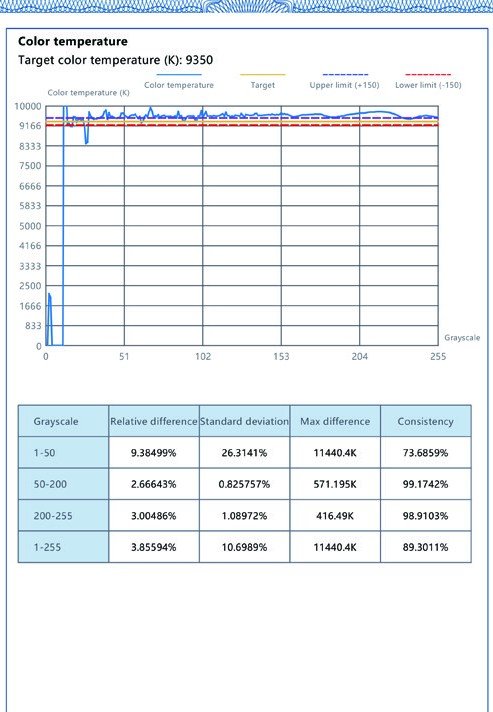

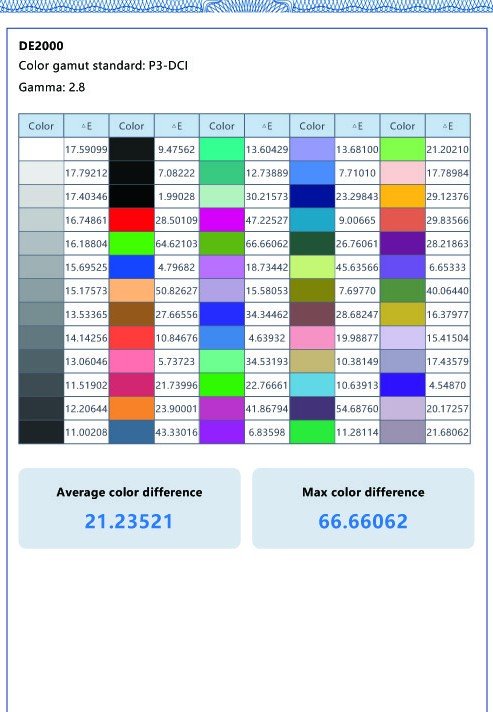

CIE 1931 gamut coverage, 24-patch ΔE analysis and full colour-temperature sweep across the grayscale.

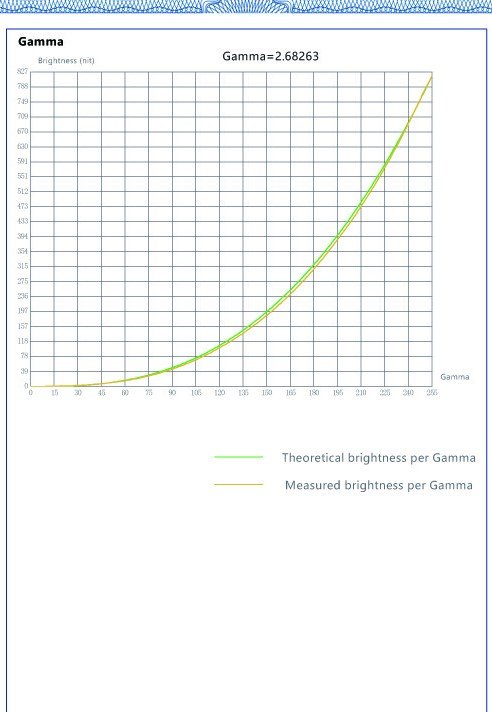

PQ, gamma, brightness & contrast

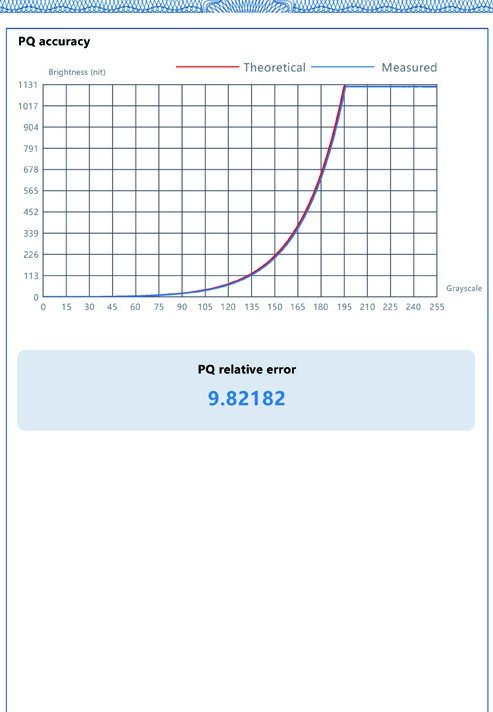

Theoretical versus measured curves plotted side-by-side, with the PQ relative error reported to two decimal places.

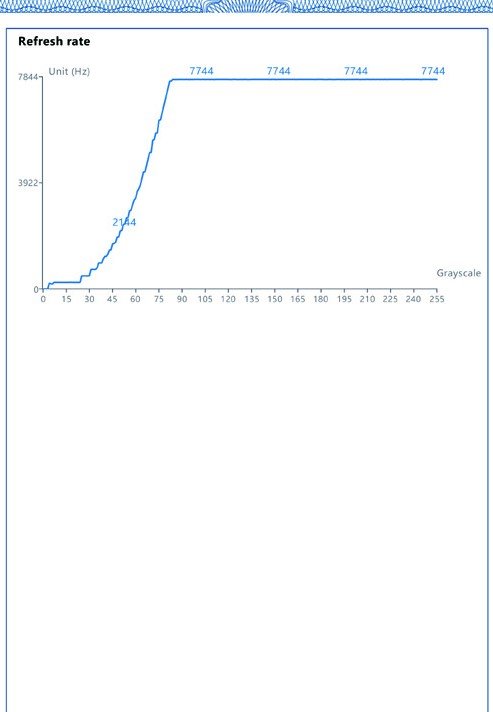

Refresh rate across grayscale 1–255
Catches refresh drop-outs and flicker at low grays that a single-point reading would miss entirely.
Pillar · 02

Simple and efficient

Automated testing — a single click
Pick the project template, press Start. The system runs the whole battery without supervision.
Complete testing in just 13 minutes
Fast enough to repeat between adjustments. Slow enough to measure honestly.
Works with every major LED control system
Designed to sit alongside whatever receiver and processor the job shipped with — never a forced replacement.
Detailed test reports generated instantly
Certificate-numbered, date-stamped, ready to attach to the sign-off pack.
04 · The Kit

A four-part instrument set.

LEDAnalyzer ships as a matched hardware-plus-software system. Colorimeter and response-time tester talk to the PC over USB, licensed by a physical dongle, driven by the Aurora LEDAnalyzer software.

Item · 01
Colorimeter
Photometric probe
Item · 02
Response Time Tester
High-speed capture
Item · 03
License Dongle
USB activation key
Item · 04
Test PC · LEDAnalyzer
Windows · USB-C
All four components are calibrated as a matched set and shipped in a protective field case. The LEDAnalyzer software auto-detects each instrument on connection and verifies the dongle before any test session can be started.
05 · The full battery

Every test in the box.

Seventeen independent measurements, organised into the three domains above. Each line appears as its own section in the final certificate.

Full Grayscale

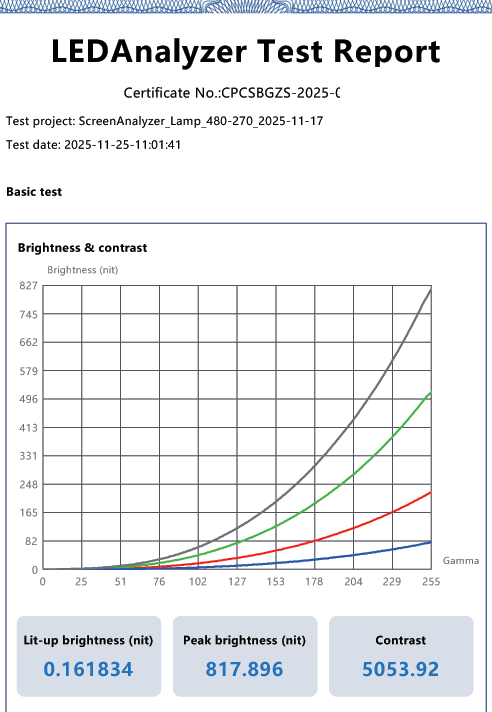

  • Brightness & contrast nit / ratio
  • Colour gamut & coverage CIE 1931
  • Colour temperature 1–255
  • Refresh rate 1–255
  • Gamma 2.00 / 2.20
  • PQ curve ST 2084

Consistency

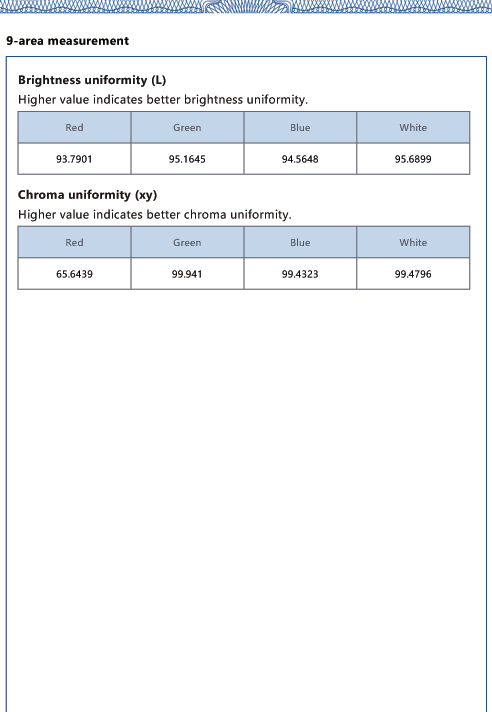

  • Brightness uniformity R · G · B · W
  • Chroma uniformity Δxy
  • Max deviation per field

Display Image

  • White grayscale neutrality
  • Ramp transition banding
  • Gloss level surface
  • Viewing angle H · V
  • Thermal effect drift
  • Solid colour uniformity full field

See LEDAnalyzer on your wall.

Book a commissioning-floor walkthrough with the Aurora team. We'll bring the full instrument set, run a live test on one of your cabinets and leave you with the signed report.
