LED Billboard Solutions

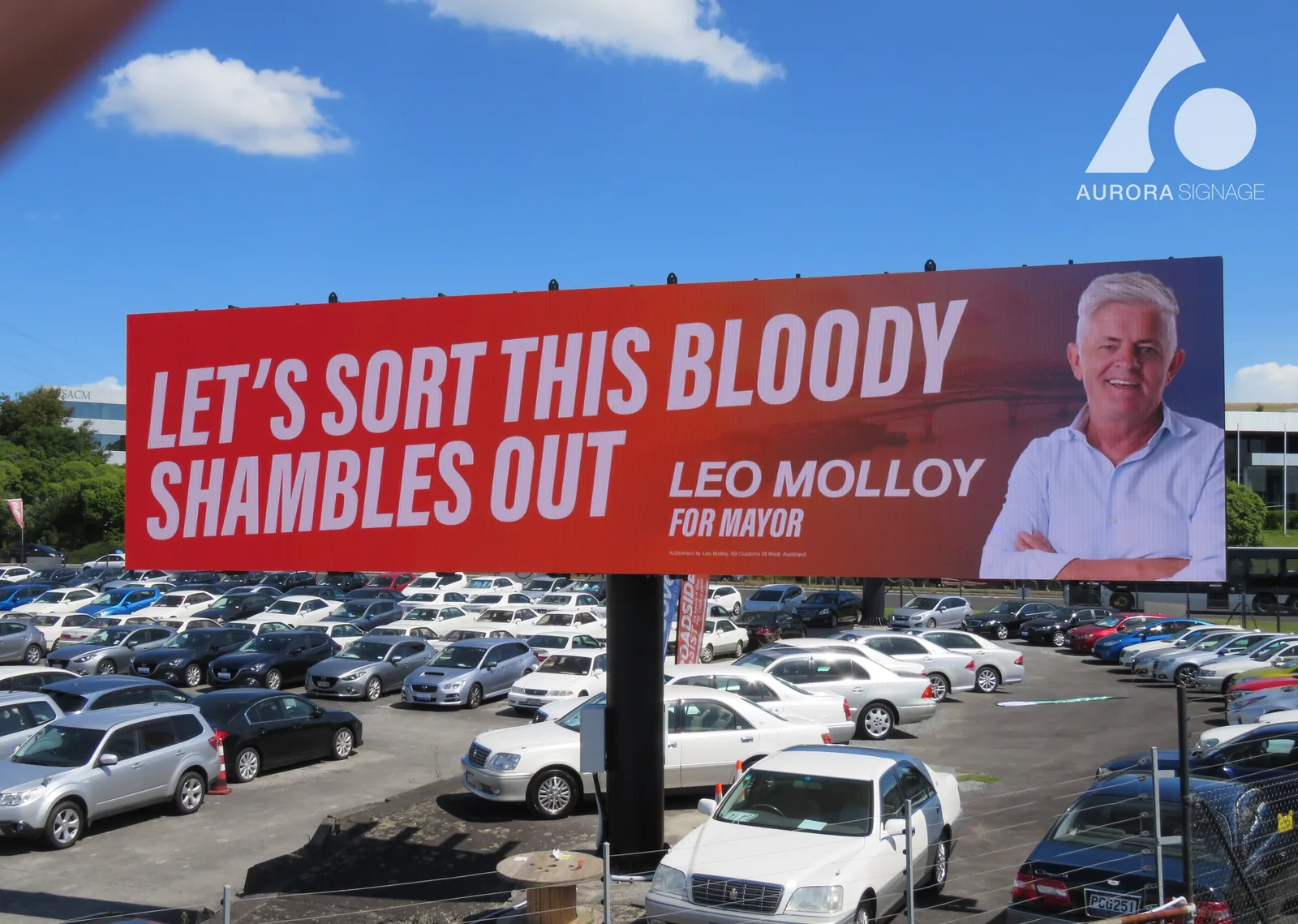

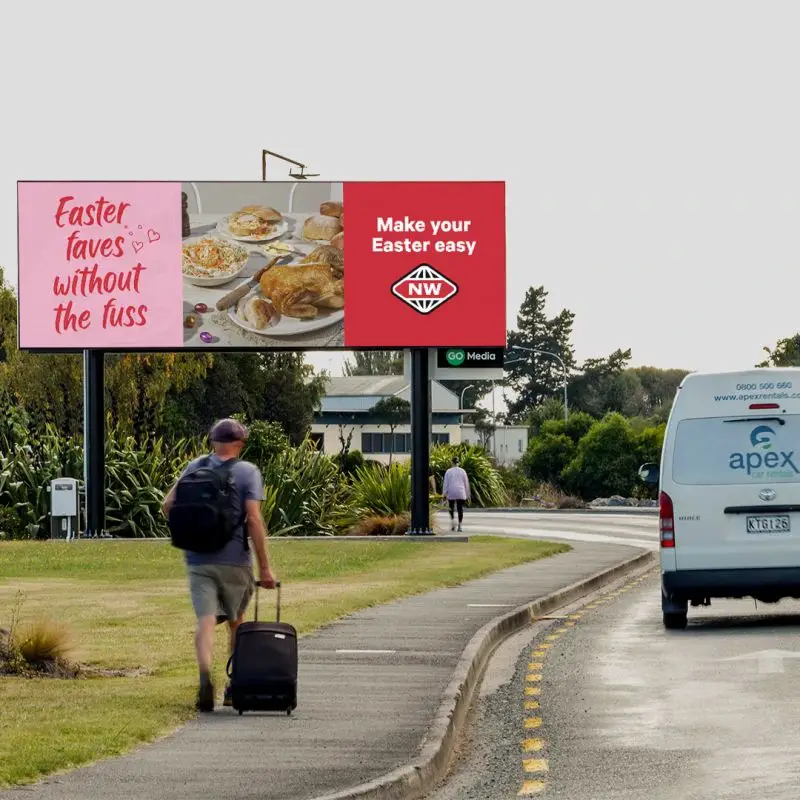

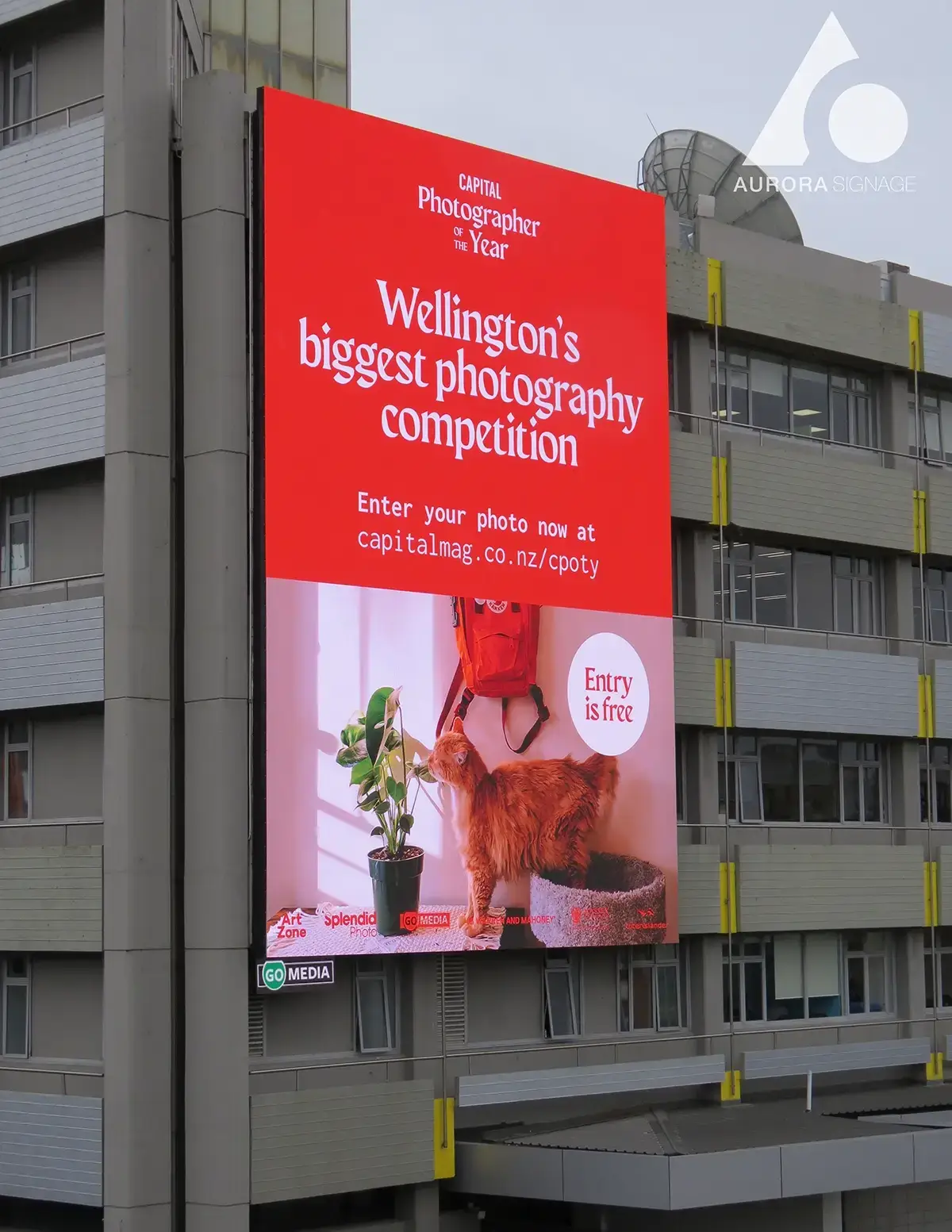

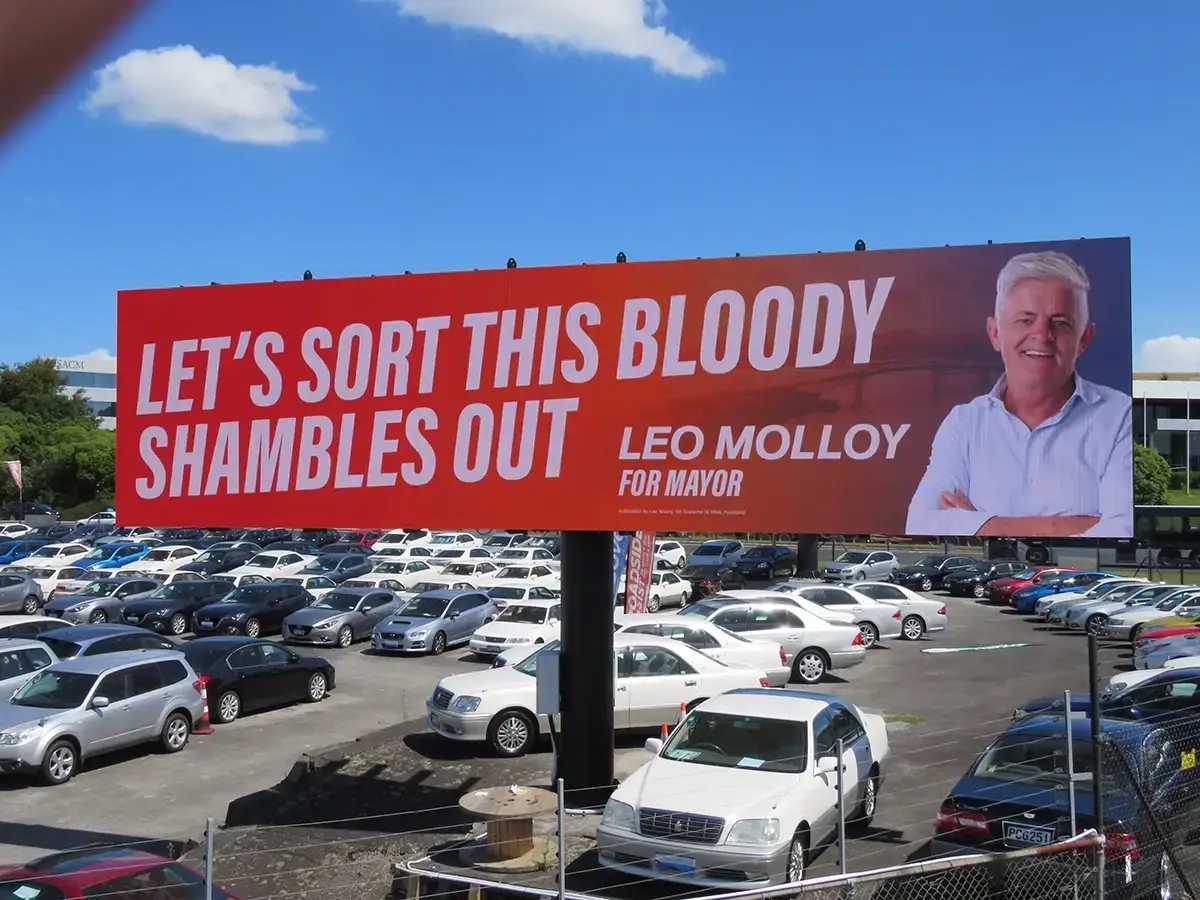

LED billboards have replaced static print as the default for high-visibility outdoor advertising. They run multiple campaigns from one site, dim and brighten with ambient light so the screen looks right at every hour, and pay back their install cost across the season instead of per-print.

Aurora's billboard-grade GSR cabinets are weather-rated front and rear, with redundant power, sun-readable brightness and front-serviceable modules so panels can be swapped without removing the cabinet from the structure. Pixel pitch is matched to read distance — long-range highway sites usually run P6–P10, while shorter-range retail and forecourt billboards use P3–P5.

We supply the screen, processor, mount design and commissioning as a single specified system. Sites are surveyed and certified to Australian standards, and supported by a local service network rather than an offshore parts queue.

Get a quote

Request a quote for billboard

Tell us about your project and we'll come back within one business day.

We respond within one business day.

Billboard Products

Cabinets we typically deploy

Outdoor-rated GSR cabinets typically specified for billboard installs.

VSPEC range badge
Outdoor
LDC50026WPR-V — VSPEC outdoor LED cabinet

LDC50026WPR-V

P2.6 pixel pitch · 500×500 mm cabinet

Brightness
4500 nits
Refresh
IP rating
IP66
Weight
8.5 kg
View Details
LUX range badge
Outdoor
LDC100039WPR-L — LUX outdoor LED cabinet

LDC100039WPR-L

P2.9 pixel pitch · 500×1000 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
16 kg
View Details
VSPEC range badge
Outdoor
LDC75029WPR-V — VSPEC outdoor LED cabinet

LDC75029WPR-V

P2.9 pixel pitch · 500×750 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
13.5 kg
View Details
GSR range badge
Outdoor
LDC100029WPR-G — GSR outdoor LED cabinet

LDC100029WPR-G

P2.9 pixel pitch · 1000×1000 mm cabinet

Brightness
5500 nits
Refresh
IP rating
IP65
Weight
22.5 kg
View Details
LUX range badge
Outdoor
LDC100029WPR-L — LUX outdoor LED cabinet

LDC100029WPR-L

P2.9 pixel pitch · 500×1000 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
16 kg
View Details
VSPEC range badge
Outdoor
LDC50029WPR-V — VSPEC outdoor LED cabinet

LDC50029WPR-V

P2.9 pixel pitch · 500×500 mm cabinet

Brightness
5000 nits
Refresh
IP rating
IP65
Weight
9 kg
View Details
VSPEC range badge
Outdoor
LDC100029WPR-V — VSPEC outdoor LED cabinet

LDC100029WPR-V

P2.9 pixel pitch · 500×1000 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
18 kg
View Details
GSR range badge
Outdoor

LDC150029WPR-G

P2.9 pixel pitch · 1500×1000 mm cabinet

Brightness
5500 nits
Refresh
IP rating
IP65
Weight
17 kg
View Details
LUX range badge
Outdoor
LDC50029WPR-L — LUX outdoor LED cabinet

LDC50029WPR-L

P2.9 pixel pitch · 500×500 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
9 kg
View Details
LUX range badge
Outdoor
LDC50039WPR-L — LUX outdoor LED cabinet

LDC50039WPR-L

P3.9 pixel pitch · 500×500 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
9 kg
View Details
VSPEC range badge
Outdoor
LDC50039WPR-V — VSPEC outdoor LED cabinet

LDC50039WPR-V

P3.9 pixel pitch · 500×500 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
8.2 kg
View Details
VSPEC range badge
Outdoor

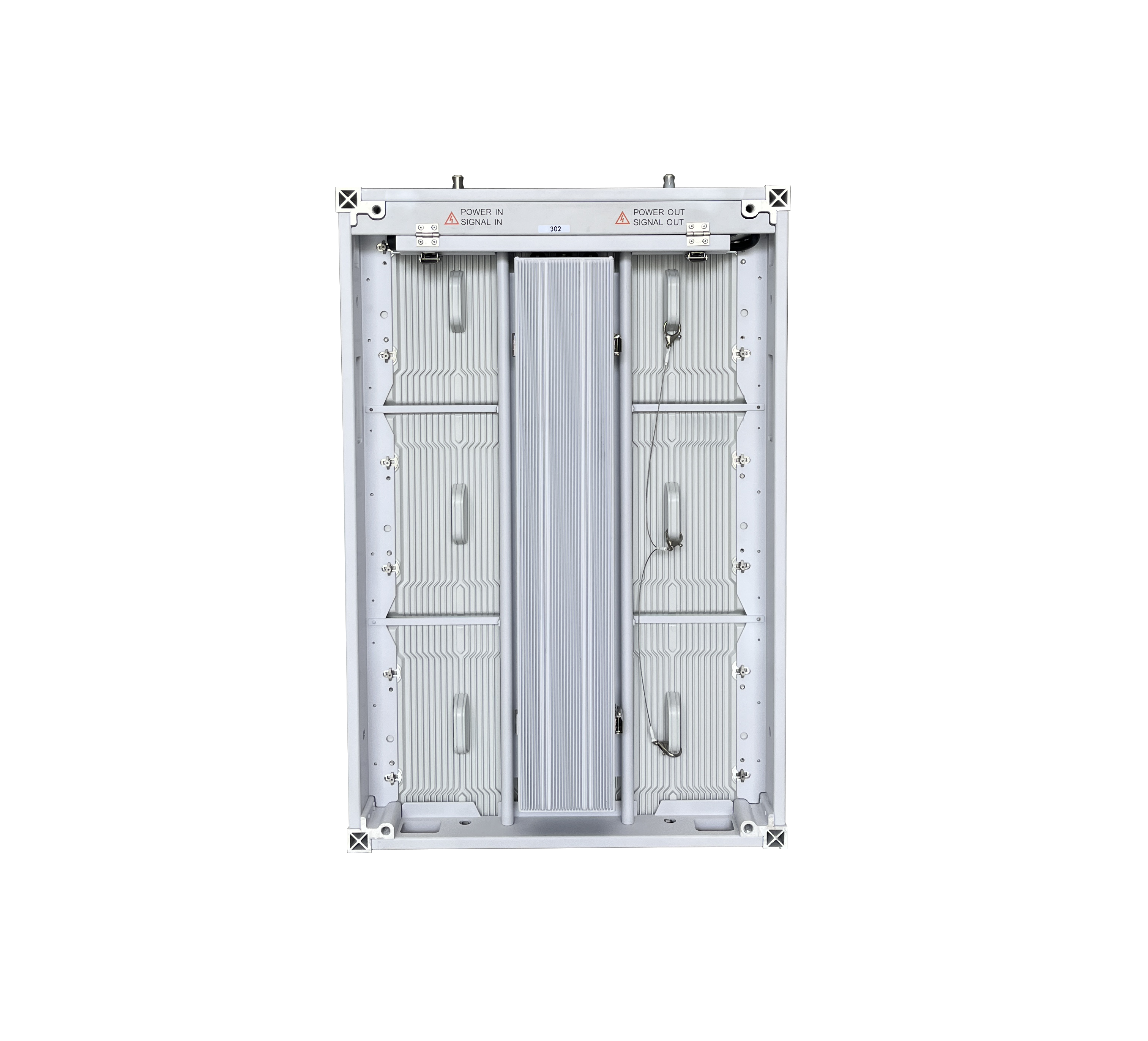

LDC100039WPR-V — VSPEC outdoor LED cabinet

LDC100039WPR-V

P3.9 pixel pitch · 500×1000 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
18.3 kg
View Details
GSR range badge
Outdoor
LDC100039WPR-G — GSR outdoor LED cabinet

LDC100039WPR-G

P3.9 pixel pitch · 1000×1000 mm cabinet

Brightness
5500 nits
Refresh
IP rating
IP65
Weight
22.5 kg
View Details
GSR range badge
Outdoor

LDC150039WPR-G

P3.9 pixel pitch · 1500×1000 mm cabinet

Brightness
5500 nits
Refresh
IP rating
IP65
Weight
17 kg
View Details
VSPEC range badge
Outdoor
LDC75039WPR-V — VSPEC outdoor LED cabinet

LDC75039WPR-V

P3.9 pixel pitch · 500×750 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
12.3 kg
View Details
LUX range badge
Outdoor
LDC9604WPR-L — LUX outdoor LED cabinet

LDC9604WPR-L

P4 pixel pitch · 960×960 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
20.5 kg
View Details
LUX range badge
Outdoor
LDC4804WPR-L — LUX outdoor LED cabinet

LDC4804WPR-L

P4 pixel pitch · 480×320 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
5 kg
View Details
VSPEC range badge
Outdoor
LDC50048WPR-V — VSPEC outdoor LED cabinet

LDC50048WPR-V

P4.8 pixel pitch · 500×500 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
9.2 kg
View Details
VSPEC range badge
Outdoor
LDC100048WPR-V — VSPEC outdoor LED cabinet

LDC100048WPR-V

P4.8 pixel pitch · 500×1000 mm cabinet

Brightness
6000 nits
Refresh
IP rating
IP65
Weight
18.3 kg
View Details
VSPEC range badge
Outdoor
LDC96057WPR-V — VSPEC outdoor LED cabinet

LDC96057WPR-V

P5.7 pixel pitch · 960×960 mm cabinet

Brightness
8000 nits
Refresh
IP rating
IP66
Weight
28 kg
View Details
VSPEC range badge
Outdoor
LDC50062WPR-V — VSPEC outdoor LED cabinet

LDC50062WPR-V

P6.2 pixel pitch · 500×500 mm cabinet

Brightness
8000 nits
Refresh
IP rating
IP66
Weight
9.2 kg
View Details
VSPEC range badge
Outdoor
LDC100062WPR-V — VSPEC outdoor LED cabinet

LDC100062WPR-V

P6.2 pixel pitch · 500×1000 mm cabinet

Brightness
8000 nits
Refresh
IP rating
IP66
Weight
18.3 kg
View Details
GSR range badge
Outdoor

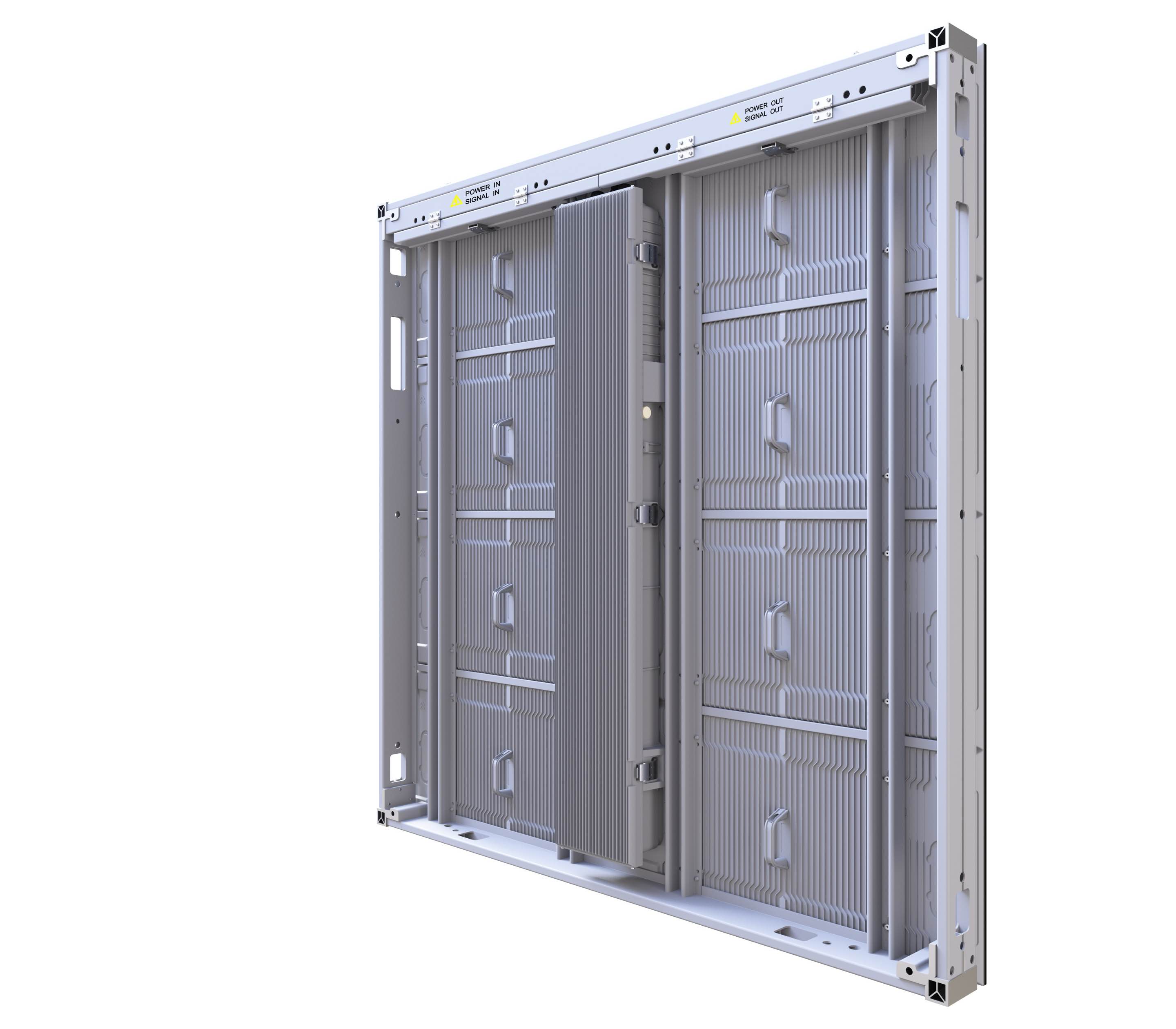

LDC100062WPR-G — GSR outdoor LED cabinet

LDC100062WPR-G

P6.2 pixel pitch · 1000×1000 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
22.5 kg
View Details
GSR range badge
Outdoor

LDC150062WPR-G

P6.2 pixel pitch · 1500×1000 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
17 kg
View Details
LUX range badge
Outdoor
LDC48066WPR-L — LUX outdoor LED cabinet

LDC48066WPR-L

P6.6 pixel pitch · 480×320 mm cabinet

Brightness
10000 nits
Refresh
IP rating
IP65
Weight
5 kg
View Details
VSPEC range badge
Outdoor

LDC64066WPR-V

P6.6 pixel pitch · 640×640 mm cabinet

Brightness
8000 nits
Refresh
IP rating
IP66
Weight
12 kg
View Details
VSPEC range badge
Outdoor

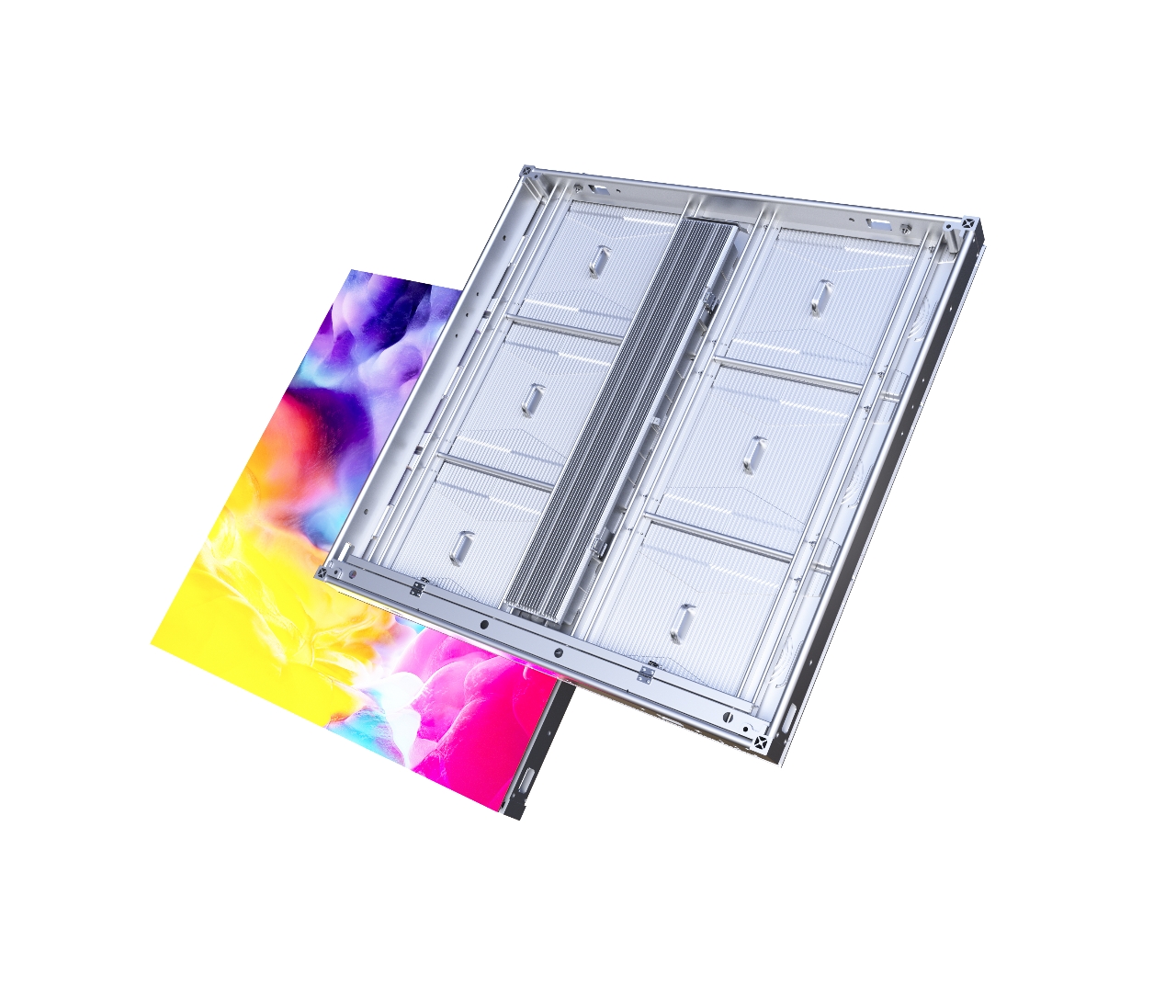

LDC96066WPR-V — VSPEC outdoor LED cabinet

LDC96066WPR-V

P6.6 pixel pitch · 960×960 mm cabinet

Brightness
8000 nits
Refresh
IP rating
IP66
Weight
28 kg
View Details
LUX range badge
Outdoor
LDC96066WPR-L — LUX outdoor LED cabinet

LDC96066WPR-L

P6.6 pixel pitch · 960×960 mm cabinet

Brightness
10000 nits
Refresh
IP rating
IP65
Weight
20.5 kg
View Details
LUX range badge
Outdoor
LDC96010WPR-L — LUX outdoor LED cabinet

LDC96010WPR-L

P10 pixel pitch · 960×960 mm cabinet

Brightness
10000 nits
Refresh
IP rating
IP65
Weight
35 kg
View Details
VSPEC range badge
Outdoor
LDC96010WPR-V — VSPEC outdoor LED cabinet

LDC96010WPR-V

P10 pixel pitch · 960×960 mm cabinet

Brightness
8000 nits
Refresh
IP rating
IP66
Weight
28 kg
View Details
GSR range badge
Outdoor

LDC1500104WPR-G

P10.4 pixel pitch · 1500×1000 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
17 kg
View Details
GSR range badge
Outdoor

LDC1000104WPR-G

P10.4 pixel pitch · 1000×1000 mm cabinet

Brightness
6500 nits
Refresh
IP rating
IP65
Weight
22.5 kg
View Details
Request a Quote

Talk to an Aurora billboard specialist.

Share your project details and one of our LED experts will be in contact shortly to scope your build, recommend cabinets and provide a tailored configuration and budget price.
