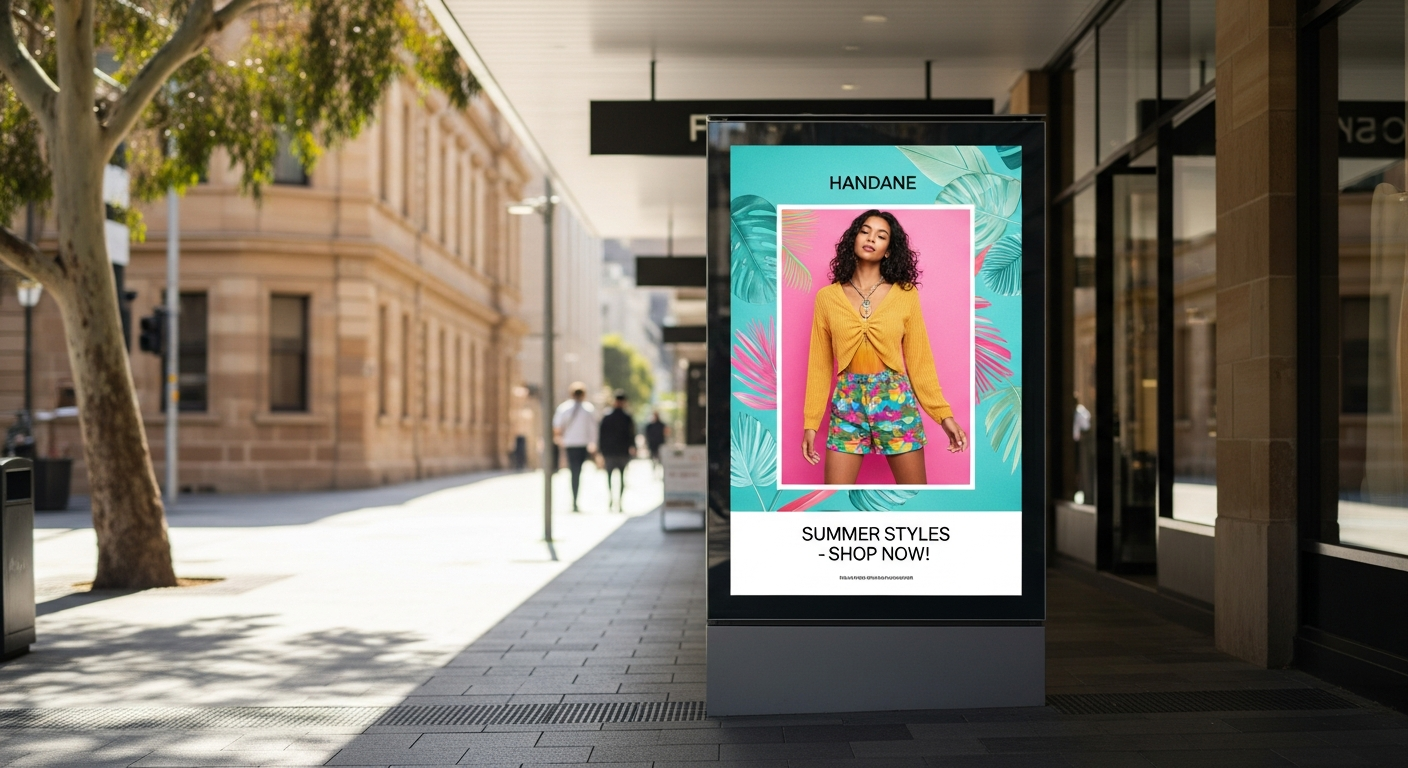

Outdoor intelligent LED poster network — CBD street furniture deployment

The brief

A confidential Australian out-of-home media operator approached us to replace a fleet of static 6-sheet poster panels with full-motion digital units. The targets:

• 75-inch portrait active area, 16:9 effective ratio (1080 × 1920 pixels).
• IP65 cabinet, IK10 vandal rating on the front face.
• Self-contained — no street excavation for fibre, no external content PC.
• Sub-30-second remote diagnostics so the ops team could see in real time when a unit went dark.
• 24/7/365 service over a 7-year asset life in coastal CBD weather.

Why P3 and not P5

These units sit on footpaths. Pedestrian dwell distance ranges from 1.5 m (someone reading the poster head-on while waiting for a tram) to 8 m (passing traffic). The 50× pixel-pitch rule gives a minimum comfortable distance of 1.5 m for P3 and 2.5 m for P5. P5 would have shown visible pixel structure to anyone close to the unit. P3 sits inside the comfort zone for the entire dwell distribution.

We considered P2.5 — it would have given a marginally better up-close experience, but the cost-per-unit was 32% higher and field-replacement modules carried a 12-week lead time vs 4 weeks for P3. Maintainability won.

What’s inside the cabinet

Every unit ships as a sealed appliance. There is no on-site PC, no separate processor box, no external SIM router.

• GSR P3 LED cabinet (1 × 1.92 m active area), front-serviceable via four toolless quarter-turn fasteners.
• IP65 die-cast aluminium enclosure with conformal-coated power and signal boards.
• 6-mm tempered AR-coated front glass, IK10-rated, swappable in 8 minutes if vandalised.
• Embedded media player (industrial fanless, 64 GB SSD) running our content scheduler.
• Cat-M1 + 4G LTE router with redundant SIMs from two different carriers.
• Front-mounted lux sensor driving brightness from 200 nit (overnight) up to 6,500 nit (direct midday sun).
• Internal temperature, fan-speed, current-draw and module-failure telemetry beaconed to our ops portal every 30 seconds.

Field deployment

Across 14 weeks we deployed 42 units (28 in Sydney, 14 in Melbourne) on the operator’s existing concrete plinth network. Per-unit on-site time was under 90 minutes:

1. Crane-lift onto the plinth (30 min).
2. Bolt-down through pre-aligned base flange (10 min).
3. Power and aerial connections terminate inside the lockable rear service door (15 min).
4. Power-on; the unit phones home, downloads its assigned content schedule and reports green status to the ops portal (15 min).
5. On-foot QA sweep around the unit, hand-back to the operator (20 min).

No street excavation, no fibre dig, no overnight closures.

The first 12 months

• 99.91% uptime fleet-wide. The seven outages we did see were all power-side (vandalised plinth-feeder once, two utility-side outages, the rest brief brown-outs).
• Average remote diagnosis time: 47 seconds from telemetry alarm to root-cause classification on the ops dashboard.
• Three vandalism incidents in 12 months. All three repaired (front glass + a single damaged module each) inside the operator’s 4-hour SLA window.
• Power consumption tracking matched our spec within 4% — important for the operator’s scope-2 emissions reporting.

Australian compliance

Each unit carries RCM marking, complies with AS/NZS CISPR 32 for emissions and AS/NZS 61000 for immunity, and is electrically certified for permanent street installation by a registered electrical engineer in each state. The operator’s roll-out passed council compliance audits in both LGAs without a single resubmit.
